TE Connectivity AMP Connectors 1-1734248-4 — FFC / FPC Cable Assemblies

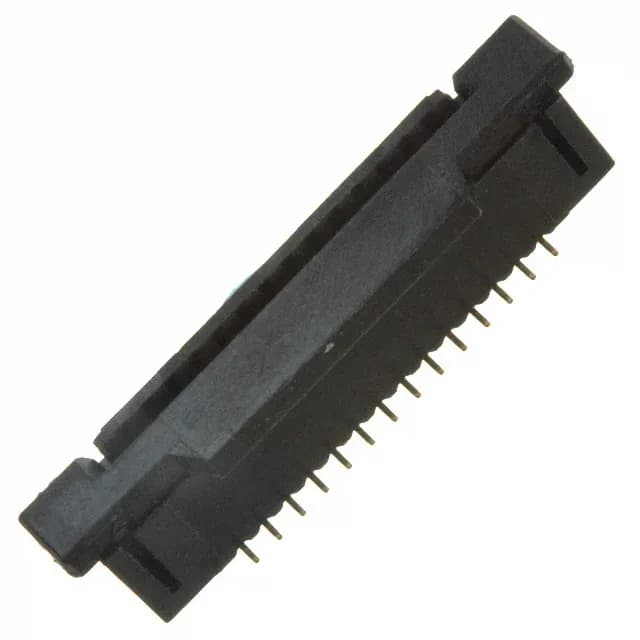

1-1734248-4 TE Connectivity FPC Connector 14 Pos 1mm ZIF

MPN1-1734248-4
Active

TE Connectivity AMP Connectors FPC vertical connector, 14 positions, 1.00 mm pitch, ZIF slide-lock actuator, gold flash contacts, SMD, active production.

$0.7799Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1734248-4 datasheet (PDF)
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1734248-4 key specifications
ParameterValue
MountingSurface Mount
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating125V
Current rating1A
Operating temperature-20°C ~ 85°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA9T), Nylon 9T
Actuator materialPolyamide (PA9T), Nylon 9T

All specifications

1-1734248-4 additional specifications
ParameterValue
Height above board0.217\" (5.50mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions14
Contact finish thicknessFlash

Product details

The 1-1734248-4 is a 14-position FPC connector on 1.00 mm pitch, with a vertical SMD orientation and a Zero Insertion Force (ZIF) slide-lock actuator. Rated 1 A per contact at 125 V, with gold flash on phosphor bronze contacts — the flash plating is suited for moderate mating cycles (20 rated) in low-voltage signal paths. The housing and actuator are molded from PA9T (UL94 V-0), and the connector accepts 0.30 mm thick FPC with a tapered cable end.

This is a vertical (straight) connector — the FPC inserts perpendicular to the PCB. The slide lock secures the cable without insertion force on the contacts.

Frequently asked questions

Does 1-1734248-4 have zero insertion force?

Yes. The slide-lock actuator provides Zero Insertion Force (ZIF) operation — the FPC inserts freely and the lock applies contact pressure after insertion.

What is the mating cycle rating for 1-1734248-4?

Rated for 20 mating cycles. The gold flash contacts support this cycle life in low-voltage signal applications.

What is the pitch of 1-1734248-4?

1.00 mm (0.039 inches).
