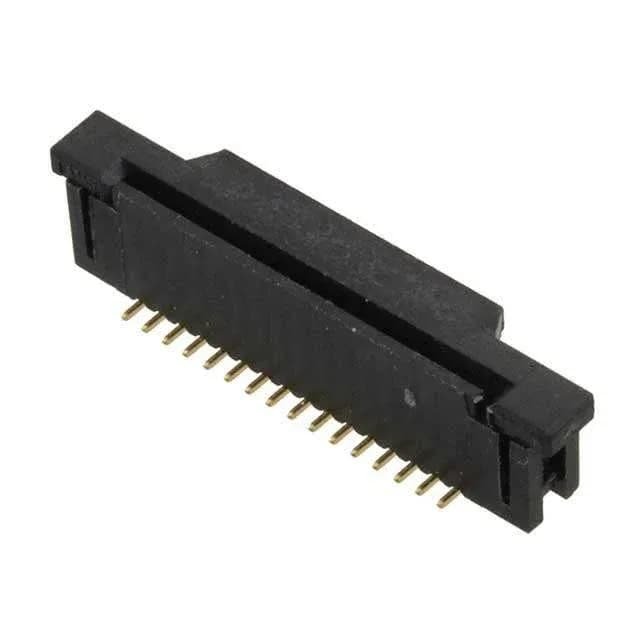

TE Connectivity AMP Connectors 1-1734248-6, FPC vertical connector, 16 positions, 1.00 mm pitch, SMT, ZIF actuator, Gold flash contacts, -20°C to 85°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -20°C ~ 85°C |
| Housing color | Black |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA9T), Nylon 9T |
| Actuator material | Polyamide (PA9T), Nylon 9T |
| Parameter | Value |
|---|---|
| Height above board | 0.217\" (5.50mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 16 |
| Contact finish thickness | Flash |
It accepts FPC cables 0.30 mm thick, with a tapered cable end type, and the contacts are gold flash over phosphor bronze — rated for 20 mating cycles and 1 A per contact at 125 V.
Termination is solder to the SMT pads — the 5.50 mm height above board leaves clearance for components underneath. Contacts are vertical, 1-sided, so the FPC traces must align with the contact pads on the same side.
It accepts FPC cables 0.30 mm thick, with a tapered cable end type. Using a different thickness risks poor contact or damage to the ZIF mechanism.
Yes, it is ROHS3 compliant.
