TE Connectivity AMP Connectors 1-1734248-8 — FFC / FPC Cable Assemblies

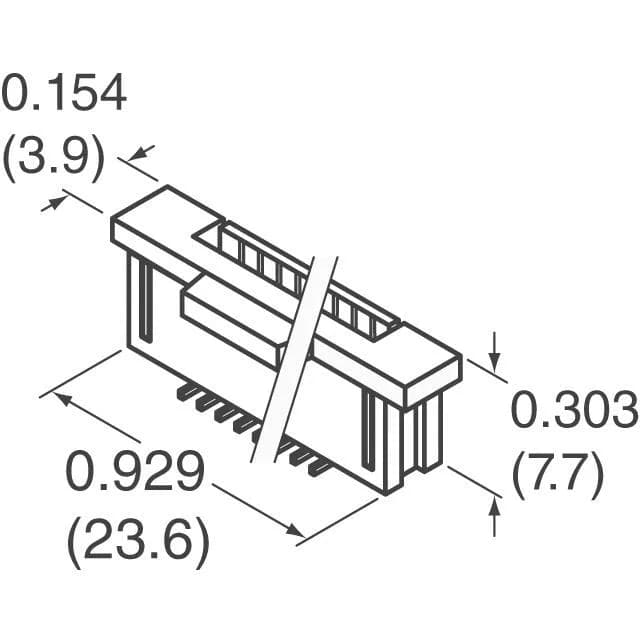

1-1734248-8 TE Connectivity FPC Connector 18 Pos 1.00mm SMD

MPN1-1734248-8
Active

TE Connectivity AMP Connectors FPC connector, 1-1734248-8, 18 positions, 0.039" (1.00mm) pitch, surface mount, ZIF actuation, gold flash contacts, rated 1A per contact at 125V, operating temperature -20°C to 85°C.

$1.7800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1734248-8 datasheet (PDF)
RoHSRoHS Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-1734248-8 key specifications
ParameterValue
MountingSurface Mount
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating125V
Current rating1A
Operating temperature-20°C~85°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA9T), Nylon 9T
Actuator materialPolyamide (PA9T), Nylon 9T

All specifications

1-1734248-8 additional specifications
ParameterValue
Height above board0.217\" (5.50mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions18
Contact finish thicknessFlash

Product details

The ZIF (Zero Insertion Force) actuator allows the FPC to be inserted without force, then locked with a slide lock — this prevents pad damage during assembly and rework. The gold flash contact finish provides adequate corrosion protection for the rated 20 mating cycles — enough for one-time assembly or infrequent field disconnect.

The vertical orientation means the FPC enters perpendicular to the PCB, which is common for board-edge routing. The slide lock holds the actuator closed after the ZIF mechanism is engaged, providing retention against vibration.

Sourced through independent distribution channels. No stock-holding claim — each order is sourced per RFQ.

Frequently asked questions

What is the exact pitch of the 1-1734248-8?

The pitch is 0.039" (1.00 mm). This is the center-to-center spacing of the contact pads on the PCB footprint.

Is the 1-1734248-8 RoHS compliant?

Yes, the 1-1734248-8 is RoHS compliant per the manufacturer's declaration.

What is the mating cycle life of the 1-1734248-8?

Rated for 20 mating cycles minimum. This is typical for a ZIF connector with gold flash contacts — suitable for one-time assembly or occasional field disconnect, not daily reconnection.
