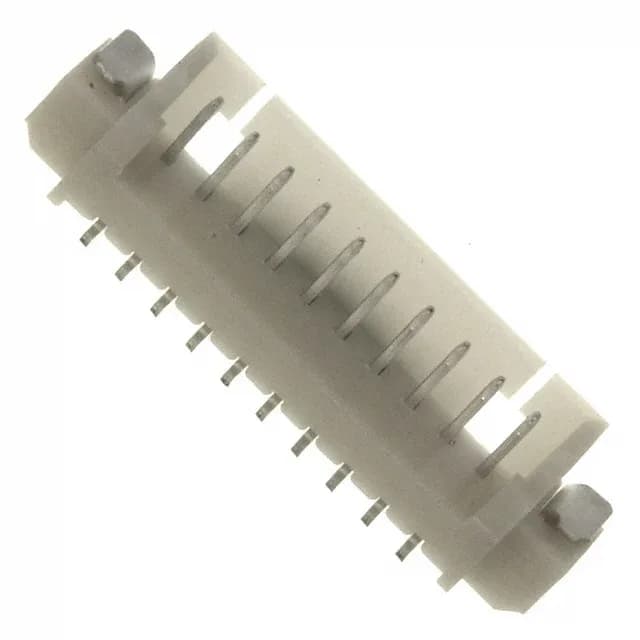

10-position 1.25 mm pitch SMT header for board-to-cable links
The 1-1734260-0 is a 10-position, single-row header on 1.25 mm pitch, designed for board-to-cable/wire applications. The 1.25 mm pitch allows denser routing than a 2.54 mm header, but the current ceiling limits it to signal-level loads.
Tin plating and operating range for moderate environments
Both the mating and post contact finishes are tin, with a mating thickness of 150.0 µin (3.81 µm). Tin-on-tin interfaces are cost-effective for applications with limited mating cycles — typically under 50 cycles — and where the operating environment stays within -25°C to 85°C. The natural (off-white) insulation color matches the HPI series family look.
Sourced per RFQ against BOM quantities.
