TE Connectivity AMP Connectors 1-1734346-1

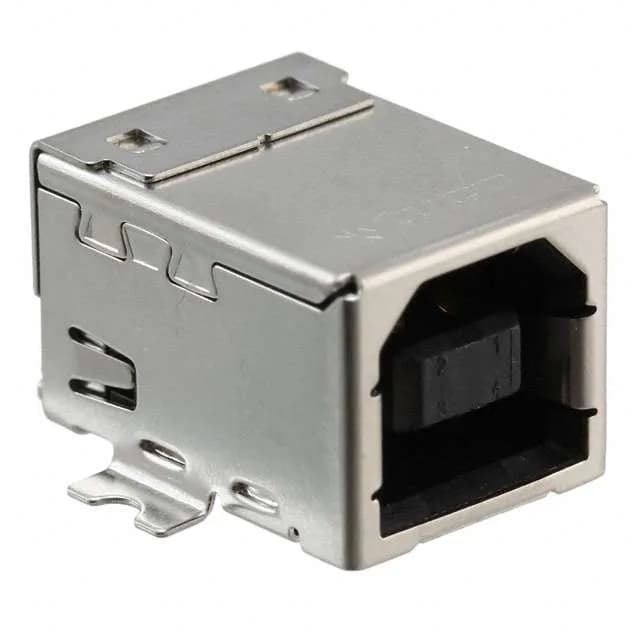

TE 1-1734346-1 USB-B Receptacle, 4P SMD RA, 1 A

MPN 1-1734346-1
Active

TE Connectivity 1-1734346-1, USB 2.0 Type-B receptacle, 4 contacts, 1 A, 30 VAC, SMT right-angle, gold contacts, 1500 mating cycles, UL94 V-0.

$1.9300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1734346-1 specifications
ParameterValue
MountingSurface Mount, Right Angle
Connector typeUSB-B (USB TYPE-B)
Voltage - rated30VAC
Current rating1A
Positions4
Mounting featureHorizontal
Operating temperature0°C ~ 50°C
Insulation colorBlack
Shell (Shielding material)Phosphor Bronze, Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB Type-B Receptacle for Standard USB 2.0 Interconnects

It carries 4 contacts in a single port, rated 1 A at 30 VAC, which is the standard power and signal specification for USB 2.0. The right-angle, surface-mount orientation places the port parallel to the board, suitable for edge-mounted applications where the cable plugs in from the side of the enclosure.

Board-Mount and Assembly Details

The surface-mount termination and Tape & Reel packaging mean this part is ready for automated pick-and-place lines. The operating temperature range of 0°C to 50°C covers typical indoor commercial and consumer environments but is not extended for industrial or automotive under-hood use.

MPN
1-1734346-1
