TE Connectivity AMP Connectors 1-1734592-0 — FFC / FPC Cable Assemblies

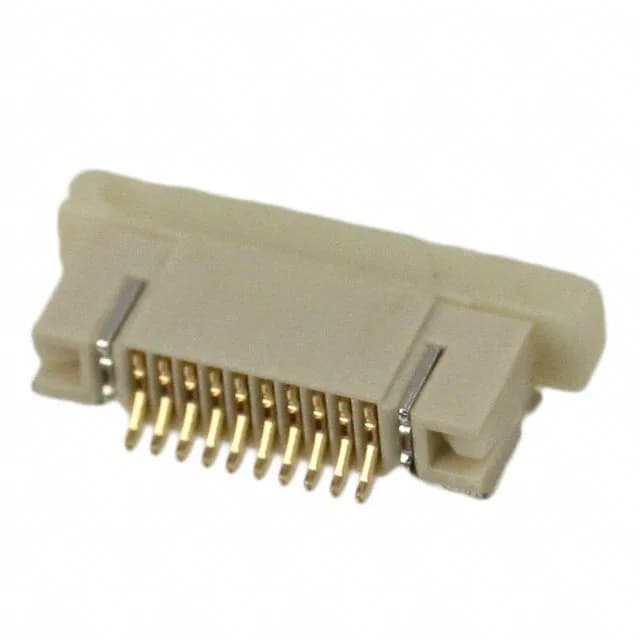

1-1734592-0 TE Connectivity FPC Connector, 0.5mm, 10 Pos

MPN1-1734592-0
Active

TE Connectivity AMP Connectors 1-1734592-0, FPC connector, 0.50mm pitch, 10 positions, bottom contact, ZIF slide lock, gold flash, 0.5A, 250V, -40°C to 85°C, SMT right-angle, UL94 V-0.

$0.3708Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1734592-0 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating250V
Current rating0.5A
Operating temperature-40°C ~ 85°C
Housing colorNatural
Actuator colorIvory
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP)
Actuator materialThermoplastic

All specifications

1-1734592-0 additional specifications
ParameterValue
Height above board0.081\" (2.05mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions10
Contact finish thicknessFlash

Product details

0.50 mm pitch, 10-position FPC connector with ZIF slide lock

The 1-1734592-0: This TE Connectivity FPC connector is a 10-position, 0.50 mm pitch, bottom-contact ZIF receptacle with a slide lock actuator. It accepts 0.30 mm thick FPC and is rated 0.5 A per contact at 250 V. The right-angle SMT termination keeps the assembly low-profile at 2.05 mm above the board.

Footprint and FPC thickness match

The 0.50 mm pitch dictates the PCB footprint — confirm the pad layout matches your board design. The connector accepts FPC thickness of 0.30 mm; inserting a thicker or thinner flex risks poor contact or damage to the ZIF mechanism.

Frequently asked questions

How can I order 1-1734592-0 or check stock?

Submit an RFQ for your target quantity. Lifecycle is active, and we source this TE Connectivity FPC connector per order — current pricing and lead time confirmed at quote.

What is the pitch of 1-1734592-0?

0.020" (0.50 mm).

Can 1-1734592-0 be used with a 0.3 mm thick FPC?

Yes, the connector is specified for 0.30 mm FPC thickness.

Is 1-1734592-0 RoHS compliant?

Yes, it is ROHS3 compliant.
