TE Connectivity AMP Connectors 1-1734592-6 — FFC / FPC Cable Assemblies

1-1734592-6 TE FPC Connector, 0.50mm Pitch, 16 Pos

MPN1-1734592-6
Active

TE Connectivity AMP Connectors 1-1734592-6, FPC connector, 0.50mm pitch, 16 positions, right-angle SMT, ZIF with slide lock, gold flash contacts, 0.5 A, -40°C~85°C.

$1.0200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1734592-6 datasheet (PDF)
RoHSRoHS Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-1734592-6 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating250V
Current rating0.5A
Operating temperature-40°C~85°C
Housing colorNatural
Actuator colorIvory
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP)
Actuator materialThermoplastic

All specifications

1-1734592-6 additional specifications
ParameterValue

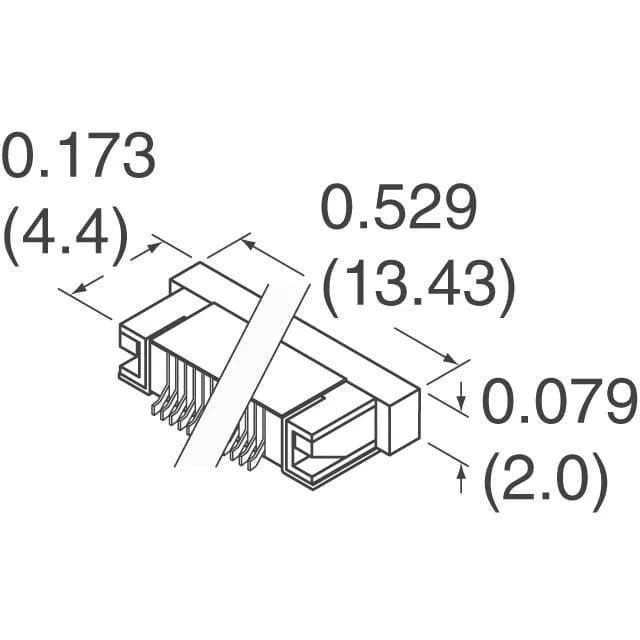

Height above board0.081\" (2.05mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions16
Contact finish thicknessFlash

Product details

0.50mm Pitch, 16-Position FPC Connector with ZIF Slide Lock

The 1-1734592-6 is a 16-position FPC connector on 0.50mm pitch — the most common pitch for compact display and sensor interfaces. The 0.30mm FPC thickness acceptance matches standard 0.3mm flex circuits.

Board Layout Fit: Right-Angle SMT with Solder Retention

The 2.05mm height above board leaves clearance under the connector for trace routing. The liquid crystal polymer (LCP) housing withstands lead-free soldering temperatures. Contacts are bottom-side — the FPC inserts from the top and contacts the pads on the lower beam. This orientation mates with standard FPC layouts where the pads face down.

Frequently asked questions

What is the pitch and pin count for 1-1734592-6?

0.50mm pitch, 16 positions. This is the most common FPC pitch for compact interconnects.

Is the 1-1734592-6 connector surface mount or through hole?

Surface mount, right-angle orientation. The connector sits at the board edge with the FPC exiting parallel to the PCB.

Does the 1-1734592-6 have a slide lock actuator?

Yes, it uses a slide lock mechanism to secure the FPC after insertion. The slide lock provides positive retention under vibration.
