TE Connectivity AMP Connectors 1-1734592-7 — FFC / FPC & Ribbon Connectors

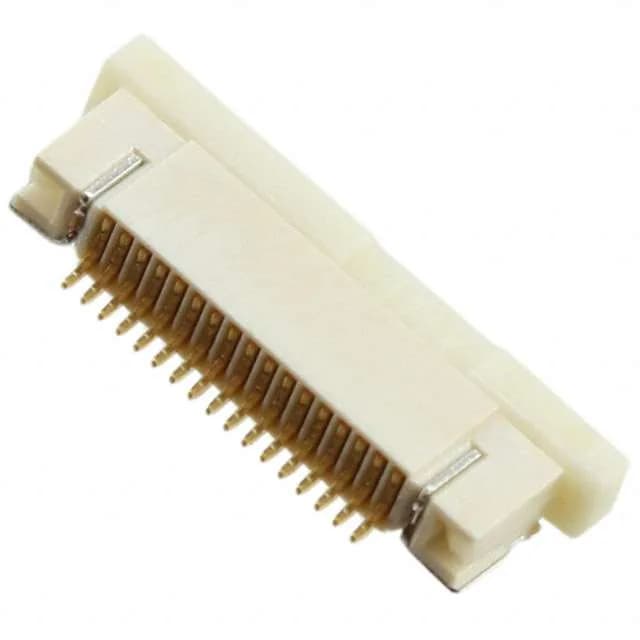

1-1734592-7 TE Connectivity FPC Connector, 17 Pos, 0.50mm

MPN1-1734592-7
Active

TE Connectivity AMP Connectors FPC connector, order code 1-1734592-7, 17 positions, 0.020" (0.50mm) pitch, 0.5A, 250V, gold flash contact finish, surface-mount right-angle, solder termination, ZIF actuation with slide lock.

$0.4492Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1734592-7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1734592-7 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating250V
Current rating0.5A
Operating temperature-40°C ~ 85°C
Housing colorNatural
Actuator colorIvory
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP)
Actuator materialThermoplastic

All specifications

1-1734592-7 additional specifications
ParameterValue
Height above board0.081\" (2.05mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions17
Contact finish thicknessFlash

Product details

ZIF slide lock, bottom-contact FPC

The 1-1734592-7 is the 17-circuit member of TE Connectivity's 1734592 FPC connector line, a zero-insertion-force (ZIF) bottom-contact design with a slide lock actuator. Rated 0.5A per contact at 250V, the connector accepts 0.30mm-thick FPC and mates with gold flash contacts on a 0.50mm pitch.

Pitch, stack height, and FPC fit

The 0.020" (0.50mm) pitch and 0.081" (2.05mm) height above board set the board footprint and z-height budget. The slide lock actuator secures the FPC without a secondary latch. The ZIF mechanism accepts 0.30mm-thick FPC with a tapered cable end; the bottom-contact arrangement keeps the contact beam on the circuit side.

Frequently asked questions

What compliance documentation does TE Connectivity provide for 1-1734592-7?

The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is available from the manufacturer.
