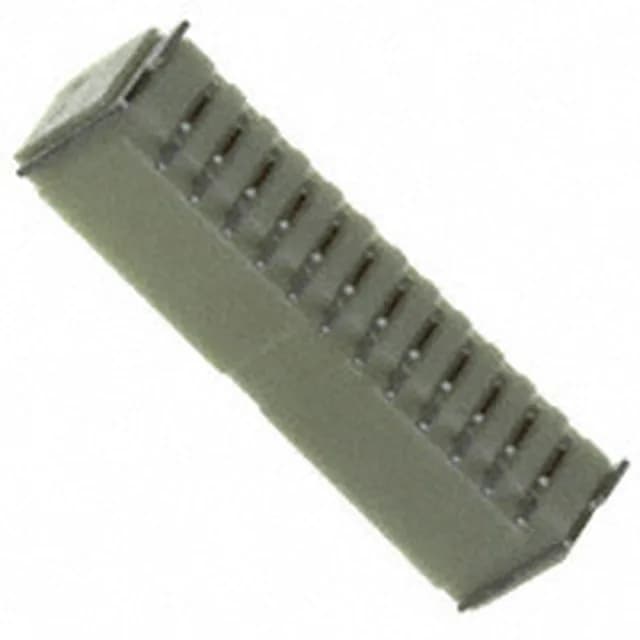

TE Connectivity AMP Connectors, High Performance Interconnect (HPI) series, Board to Cable/Wire header, 12 positions, 1.00 mm pitch, shrouded - 4 wall, SMD, 1 A, 50 V, -55°C to 105°C, UL94 V-0, active production.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Ivory |
| Insulation height | 0.169\" (4.30mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 120.0µin (3.05µm) |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
The full four-wall shroud protects the male square pins during mating and prevents accidental shorting against adjacent components or the board edge.
The tin-plated mating finish (120.0 µin) is suited for moderate mating-cycle applications; the same thickness on the post ensures consistent solderability.
As a shrouded male header from the HPI series, it mates with a corresponding female receptacle from the same series.
