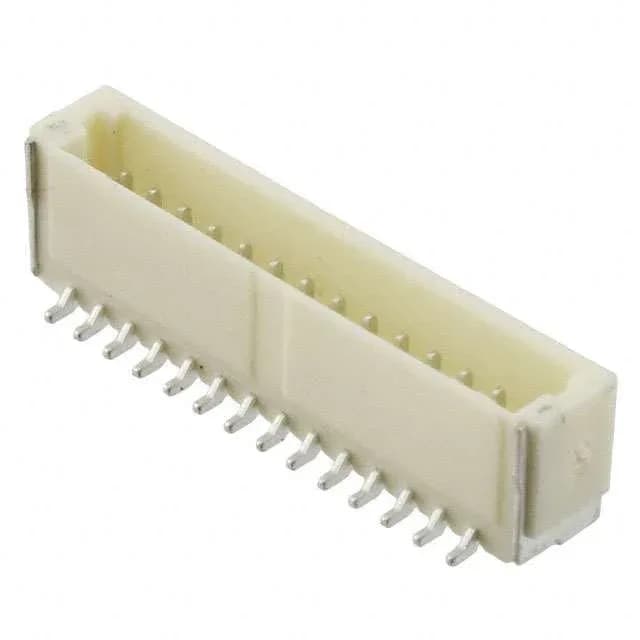

TE Connectivity AMP Connectors High Performance Interconnect (HPI) series, 1-1734595-4, board-to-cable/wire header, 14 positions, 1.00 mm pitch, single row, surface mount, shrouded 4-wall, tin-plated contacts, 1 A, 50 V, -55°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Ivory |
| Insulation height | 0.169\" (4.30mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 120.0µin (3.05µm) |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
Rated at 1 A per contact and 50 V, it suits signal-level and low-power interconnects in automotive, industrial, medical, and general-purpose equipment.
Solder retention features and a pick-and-place surface aid automated assembly.
This header mates with a board-to-cable/wire receptacle from the same HPI series. The 1.00 mm pitch, single-row, shrouded design requires a matching 14-position receptacle with corresponding keying.
Yes, the 1-1734595-4 is a surface-mount header with solder termination, designed for pick-and-place assembly. It includes solder retention features.
The current rating is 1 A per contact at the specified operating temperature range. Derate above 105°C per the manufacturer's curve.
