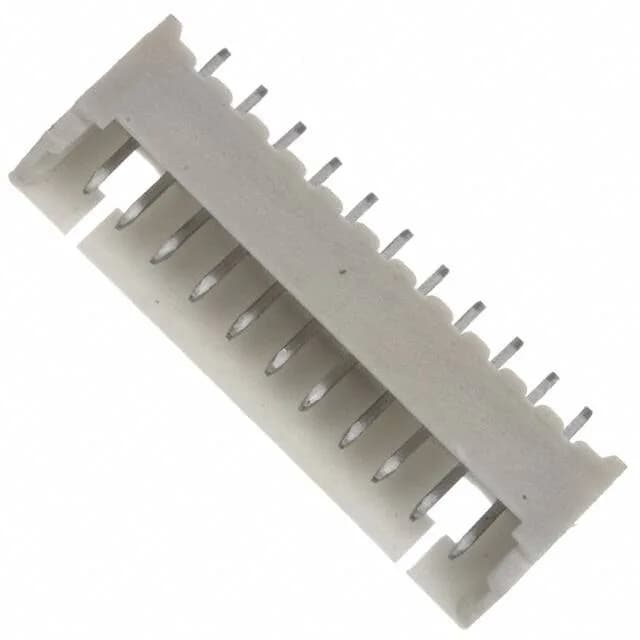

TE Connectivity AMP Connectors HPI series, 1-1734598-1, Board to Cable/Wire header, shrouded 4-wall, 1.25mm pitch, 11 positions single row, through-hole solder, tin-plated male pins, 1 A, 100 VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 100VAC |
| Current rating | 1A |
| Operating temperature | -25°C~85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.185\" (4.70mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.067\" (1.70mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
The 1-1734598-1: The mating contact finish is tin, 120.0 µinch (3.05 µm) thick, which is standard for moderate-cycle applications where cost matters over gold's high-cycle endurance.
The base product number is 1734598, which helps when searching for mating receptacles or alternate packaging.
This is a shrouded header from the HPI series at 1.25 mm pitch, 11 positions, single row.
