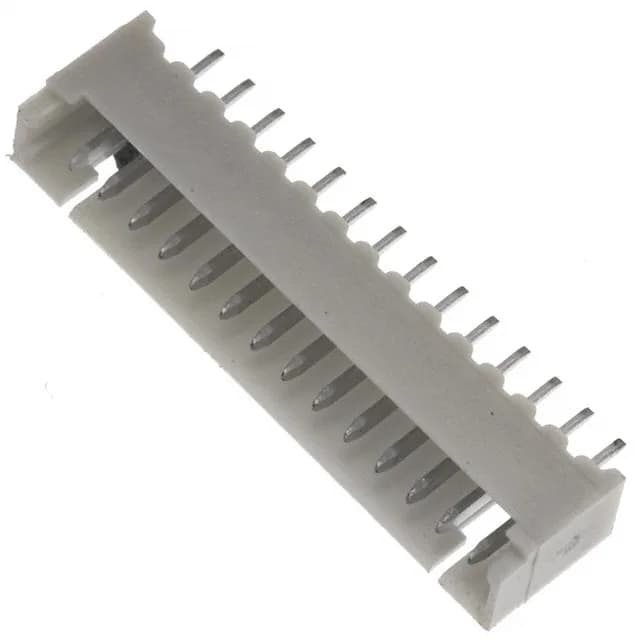

TE Connectivity AMP Connectors High Performance Interconnect (HPI) header, order code 1-1734598-4, 14 positions, single row, 1.25 mm pitch, 1 A, 100 VAC, tin-plated mating contacts, through hole, solder termination.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 100VAC |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.185\" (4.70mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.067\" (1.70mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
The 1-1734598-4 is a 14-position single-row header in TE's High Performance Interconnect (HPI) series, configured for board-to-cable/wire applications.
Applications listed include automotive, general purpose, industrial, and medical equipment.
The style is Board to Cable/Wire, and the series is High Performance Interconnect (HPI).
