15-position shrouded header for wire-to-board signal routing

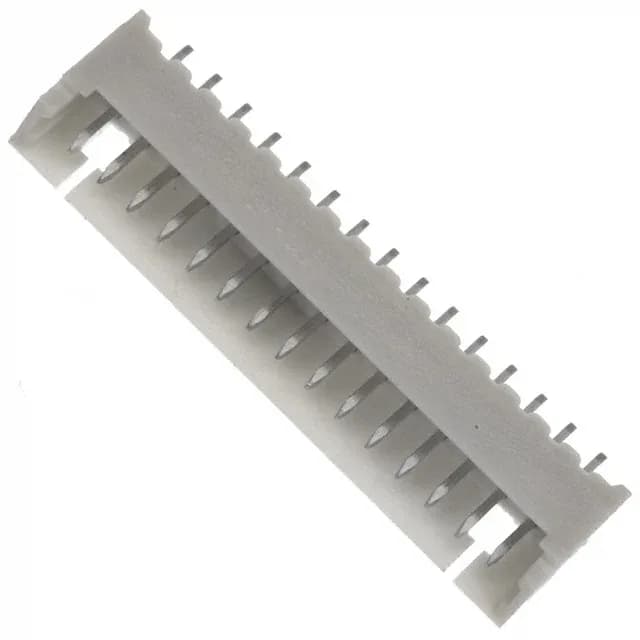

The 1-1734598-5 is a 15-position, single-row header from TE's High Performance Interconnect (HPI) series, designed for board-to-cable/wire applications. It uses a 0.049" (1.25 mm) pitch, which keeps the board footprint compact for dense signal layouts. The full 4-wall shrouding guides the mating receptacle into alignment and protects the square male pins from damage during handling or blind mating.
Current, voltage, and temperature envelope
Rated at 1 A per contact and 100 VAC, this header is a signal-level interconnect—not a power rail.
Mating and termination details
This header mates with the corresponding HPI series receptacle housing (sold separately). Both the mating and post contacts are tin-plated; the mating finish is 120.0 µin (3.05 µm) thick, which supports moderate mating cycle counts in a controlled environment.
