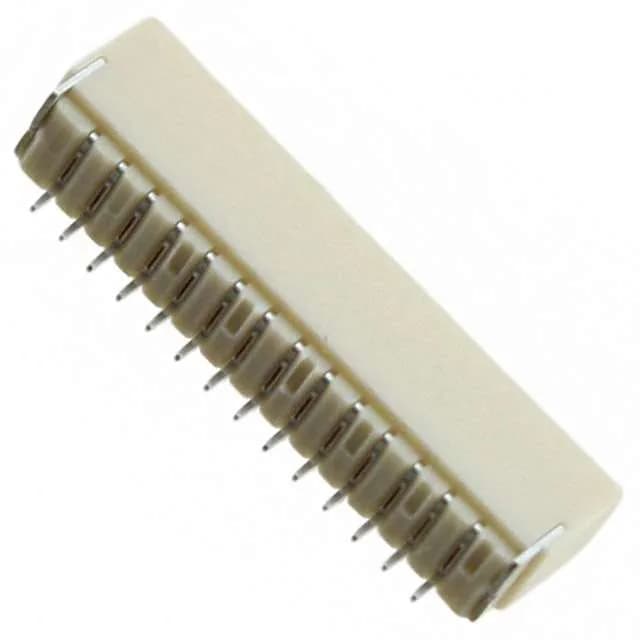

TE Connectivity High Performance Interconnect (HPI) header, order code 1-1734709-4, 14 positions, single row, 1.00 mm pitch, 1 A, 50 V, tin-plated mating contacts, surface-mount right-angle, solder termination.
1-1734709-4 TE Connectivity HPI Header, 14-Pos 1.00mm
MPN1-1734709-4
Active
TE Connectivity High Performance Interconnect (HPI) header, order code 1-1734709-4, 14 positions, single row, 1.00 mm pitch, 1 A, 50 V, tin-plated mating contacts, surface-mount right-angle, solder termination.
$1.3358Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Voltage rating | 50V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.114\" (2.90mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 120.0µin (3.05µm) |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
