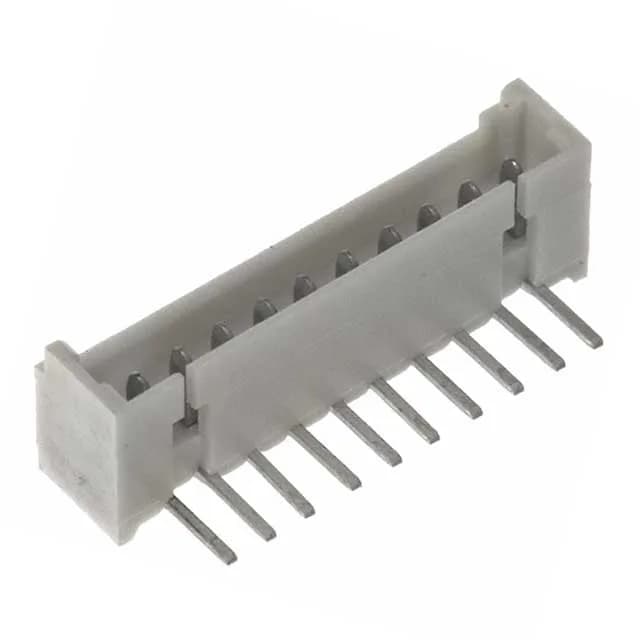

TE Connectivity AMP Connectors High Performance Interconnect (HPI) header, 1-1734829-0, 10-position single-row, 1.25 mm pitch, right-angle through-hole, shrouded 4-wall, tin-plated male pins, rated 1 A at 125 V.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.126\" (3.20mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.091\" (2.30mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 1-1734829-0: This is a 10-position single-row header from the TE HPI series, pitched at 0.049" (1.25 mm) — the tightest pitch in the HPI line, which means the mating receptacle and the PCB footprint are both compact.
As a board-to-cable/wire header, it expects a matching HPI receptacle housing with crimp terminals. The shrouded 4-wall guides the receptacle into alignment and prevents pin damage.
It mates with a TE HPI series receptacle housing for 1.25 mm pitch, 10-position single-row, crimp-style terminals. The 4-wall shrouding aligns the receptacle. Confirm the exact receptacle part number from the HPI catalog.
