TE Connectivity AMP Connectors FPC connector, order code 1-1734839-4, 14 positions, 0.020" (0.50mm) pitch, gold-plated contacts, 0.5 A, 250 V, surface-mount right-angle, solder termination, ZIF slide lock.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 250V |
| Current rating | 0.5A |
| Operating temperature | -20°C~85°C |
| Housing color | Natural |
| Actuator color | Ivory |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Actuator material | Thermoplastic |
| Parameter | Value |
|---|---|
| Height above board | 0.081\" (2.05mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Gold |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 14 |
| Contact finish thickness | Flash |

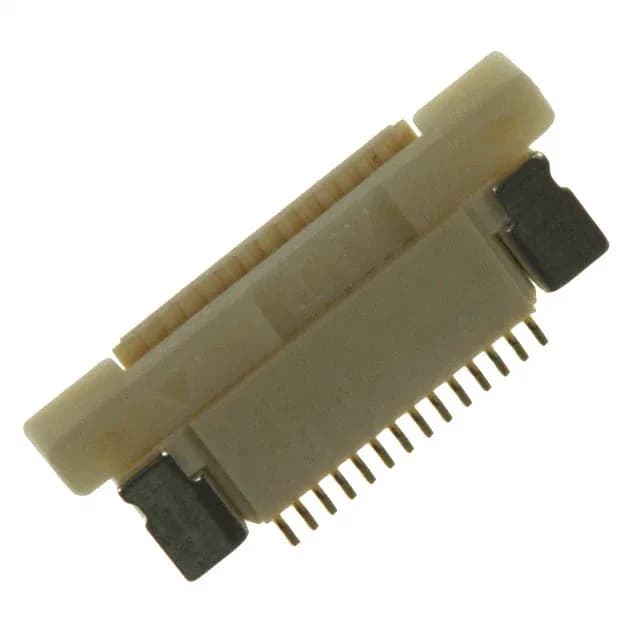

The 1-1734839-4: The right-angle SMT body stands 0.081" (2.05mm) above the board, keeping the mated FPC low-profile for tight enclosures. Solder retention features hold the connector in place during reflow; the 0.50mm pitch demands a matching footprint for reliable solder joints.
