TE Connectivity AMP Connectors 1-1735251-2 — Pin Headers, Sockets & Housings

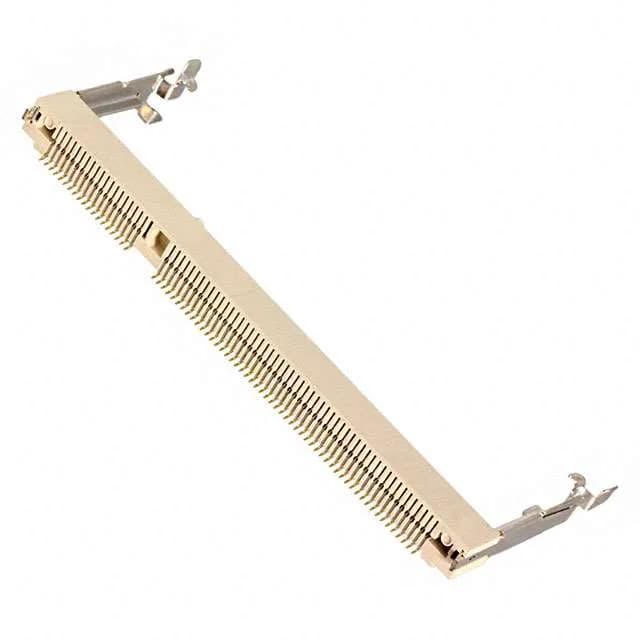

TE 1-1735251-2 SODIMM Connector, 144 Pos, Right Angle, SMT

MPN1-1735251-2
Active

TE Connectivity AMP Connectors SODIMM connector, order code 1-1735251-2, 144 positions, DDR2 SDRAM, right-angle insertion, surface-mount, gold contact finish, 24.8µin (0.63µm) plating, natural housing, tape & reel packaging.

$4.0493Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1735251-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1735251-2 specifications
ParameterValue
Memory typeDDR2 SDRAM
MountingSurface Mount
Mounting featureNormal, Standard - Top
Connector typeSODIMM
ColorNatural
Height0.205\" (5.20mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Latches
Card thickness0.039\" (1.00mm)
Contact finishGold
Insertion angleRight Angle
Positions144
Contact finish thickness24.8µin (0.63µm)

Product details

144-position SODIMM with gold contacts

The 1-1735251-2 is a 144-position SODIMM connector from TE Connectivity AMP Connectors, designed for DDR2 SDRAM modules with a right-angle insertion orientation and surface-mount termination. Gold contact finish with 24.8µin (0.63µm) thickness provides corrosion resistance for repeated memory module insertion cycles.

Active production, tape & reel feed

Packaged in Tape & Reel (TR) and Cut Tape (CT) — the reel format supports automated pick-and-place for high-volume board assembly.

Frequently asked questions

What is the card thickness supported by this SODIMM connector?

The 1-1735251-2 accepts a card thickness of 0.039" (1.00mm), standard for DDR2 SODIMM modules.

What packaging options are available for 1-1735251-2?

The connector ships in Tape & Reel (TR) or Cut Tape (CT) — the reel option is suited for automated SMT lines.
