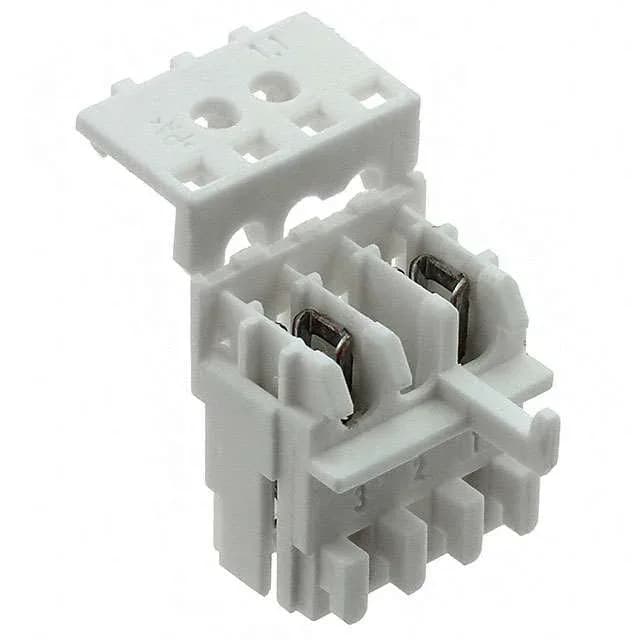

DuoPlug 3-Position IDC Receptacle — 0.098" Pitch, Tin Contacts
The TE Connectivity DuoPlug 1-1740918-3 is a 3-position, single-row IDC receptacle designed for discrete wire harnesses that need a quick, solderless termination. Tin plating on the female blade socket contacts keeps cost low for applications with few mate/unmate cycles.
What the Pitch and Termination Mean for Your Assembly
The 0.098" (2.50mm) pitch defines the footprint: the PCB header pads or ribbon cable conductors must be spaced at exactly 2.50mm center-to-center. At 3 positions, the total width across the contacts is about 5.00mm from center of pin 1 to center of pin 3 — a compact fit for a 3-circuit harness. This works well for high-volume builds but the connection is not reworkable — once terminated, the wire is locked in. The right-angle cable exit keeps the wire run low-profile against the board, which matters when the connector sits near a panel wall.
The 3-position count matches a 3-circuit header — the single-row layout means a 1x3 header.
