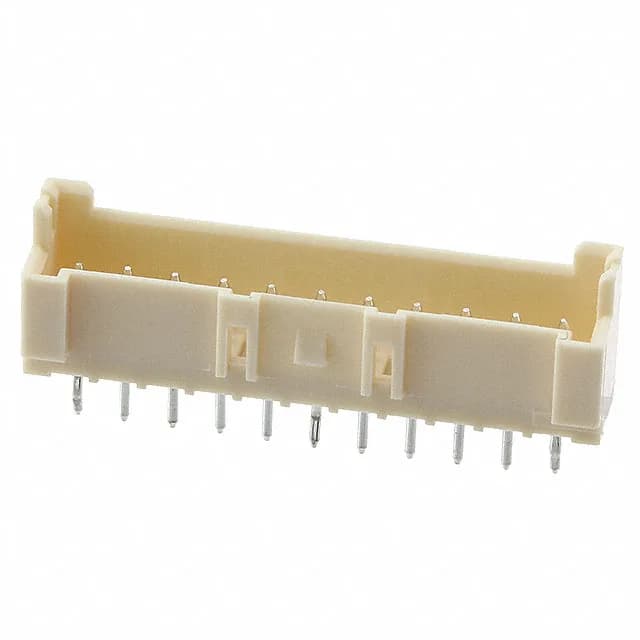

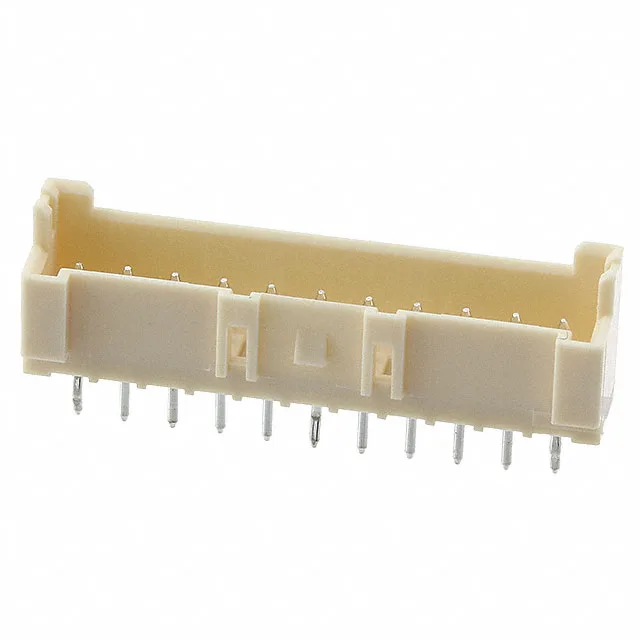

TE Connectivity AMP Connectors Economy Power 2.5 header, order code 1-1744418-1, 11 positions, single row, 0.098" (2.50mm) pitch, 4.2 A, 250 VAC, tin-plated mating contacts, through hole, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | Economy Power 2.5 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 4.2A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.346\" (8.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 1-1744418-1: The header carries a glow-wire compliant rating and a UL 94 V-0 flammability classification — the polyamide housing meets the flame-retardant requirements for industrial and lighting equipment.
The header is glow-wire compliant and carries a UL 94 V-0 flammability rating. RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors — the part is listed under base product number 1744418.
