TE Connectivity AMP Connectors 1-1744428-0 — Pin Headers

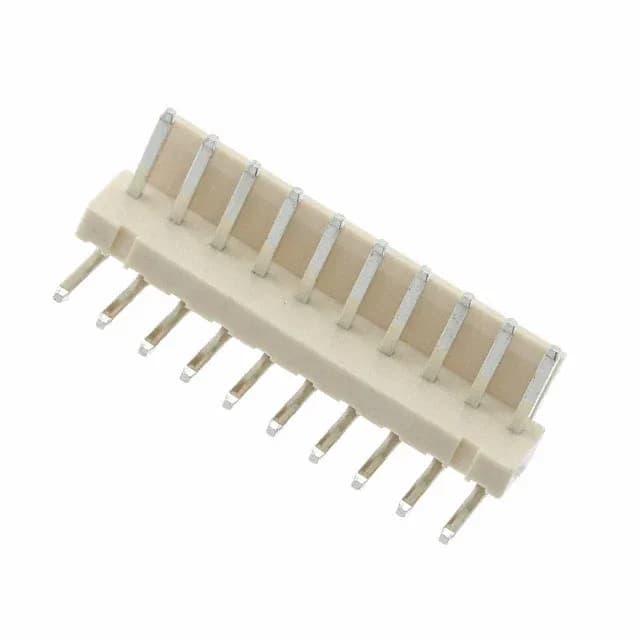

1-1744428-0 TE Economy Power Header, 10 Pos, 3.96mm, R/A

MPN1-1744428-0
Active

TE Connectivity AMP Connectors, Economy Power series, 1-1744428-0, single-row right-angle male header, 10 positions, 0.156" (3.96mm) pitch, rated 7.5A per circuit at 250VAC, tin-plated brass contacts, shrouded 1-wall friction lock, through-hole solder termination, glow wire compliant, UL94 V-0, operating -25°C to 105°C.

$1.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEconomy Power
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-1744428-0 key specifications
ParameterValue
SeriesEconomy Power
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current rating7.5A
Operating temperature-25°C ~ 105°C
Contact materialBrass
Insulation height0.339\" (8.61mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0

All specifications

1-1744428-0 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTray
FeaturesGlow Wire Compliant
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions10
Contact finish - postTin
Contact length - post0.142\" (3.60mm)
Contact finish - matingTin
Contact length - mating0.338\" (8.59mm)
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating80.0µin (2.03µm)

Product details

The 1-1744428-0 is a single-row, right-angle male header from TE's Economy Power series, with 10 positions on a 0.156" (3.96mm) pitch. It mates with the matching Economy Power receptacle housing for board-to-cable/wire applications. The 1-wall shrouding with friction lock holds the pair mated under moderate vibration, common in general-purpose industrial and lighting gear.

This header mates with the Economy Power receptacle housing (order code 1-1744428-0's female counterpart, e.g., 1744428-x series). Termination is through-hole solder: the 0.142" (3.60mm) post length suits standard 1.6mm PCBs.

Frequently asked questions

What housing mates with the 1-1744428-0 header?

It mates with the Economy Power receptacle housing (same series, 10-position, 3.96mm pitch). The friction lock on the header engages with the receptacle's locking ramp. Confirm the receptacle order code from the same series for your wire gauge and terminal type.
