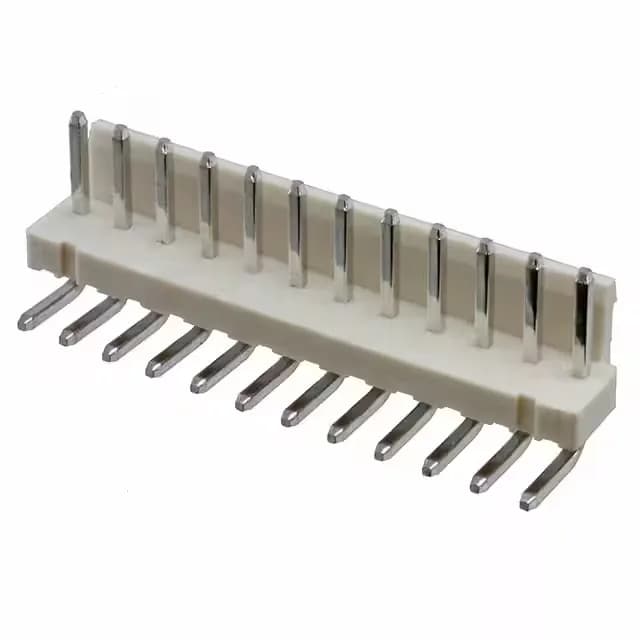

TE Connectivity AMP Connectors Economy Power header, 1-1744428-2, 12 circuits, 0.156" (3.96 mm) pitch, single-row right-angle through-hole, tin-plated brass contacts rated 7.5 A per circuit at 250 VAC, shrouded 1-wall with friction lock, glow wire compliant, -25°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C~105°C |
| Contact material | Brass |
| Insulation height | 0.339\" (8.61mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Glow Wire Compliant |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.338\" (8.59mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 80 µinch tin on the post provides a solderable surface compatible with standard lead-free wave-solder profiles.
Glow wire compliant per the feature listing, meaning the polyamide housing withstands 850°C without sustained ignition — required for lighting fixtures, household appliances, and industrial equipment that must pass IEC 60335-1 glow wire tests.
ROHS3 compliant, with no exemptions listed.
1-1744428-2 is sourced through independent distribution against an RFQ. Submit an RFQ for your target quantity and lead time.
The mating half is a TE Connectivity Economy Power series receptacle housing with 12 circuits and a friction lock feature. The receptacle accepts crimp terminals for 20–24 AWG wire. Confirm the specific housing part number against your wire gauge and application.
Yes, it is ROHS3 compliant with no exemptions listed.
