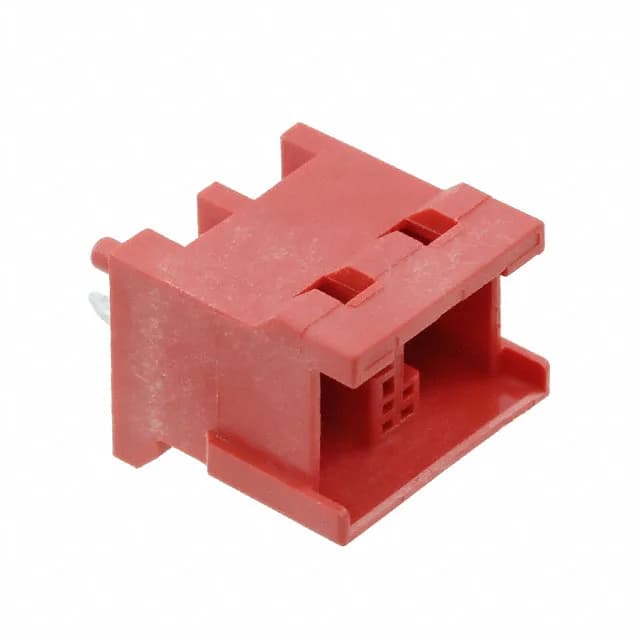

TE Connectivity AMP Connectors Grace Inertia GIC series, Header, Board to Cable/Wire, 2 Positions, 1 Row, 0.312" (7.92 mm) Pitch, Through Hole, Press-Fit, Solder, Tin Contacts, Latch Holder, Red Insulation, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 300VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Red |
| Insulation height | 0.571\" (14.50mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.312\" (7.92mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 1-1747052-2: The termination supports both press-fit and solder assembly, giving the board builder flexibility: press-fit for high-reliability backplane stacks where rework is rare, or solder for standard through-hole processing with a wave or selective solder line.
This header mates with Grace Inertia receptacles in the same 7.92 mm pitch series. The latch holder and 4-wall shroud are designed for a positive-lock fit with the matching receptacle housing.
Submit an RFQ through this listing for a current sourcing response.
