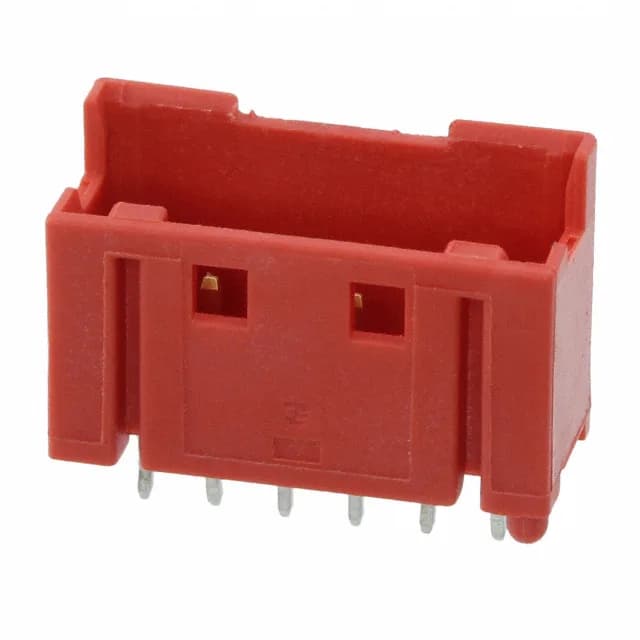

TE Connectivity Grace Inertia GIC header, order code 1-1747067-6, 6 positions, single row, 2.50 mm pitch, 50 V, gold-plated mating contacts, through-hole, kinked-pin solder termination.
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Red |
| Insulation height | 0.445\" (11.30mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
The 1-1747067-6 is the 6-circuit member of TE's Grace Inertia GIC shrouded header line, a board-to-cable/wire interconnect. Mating contacts are gold-plated, post finish is tin.
Four-wall shrouding with a latch holder fastening protects the tab contacts and provides positive retention against vibration. The board guide aids alignment during assembly. Housing is red glass-filled nylon 6/6 rated UL94 V-0. Operating range -30°C to 105°C.
