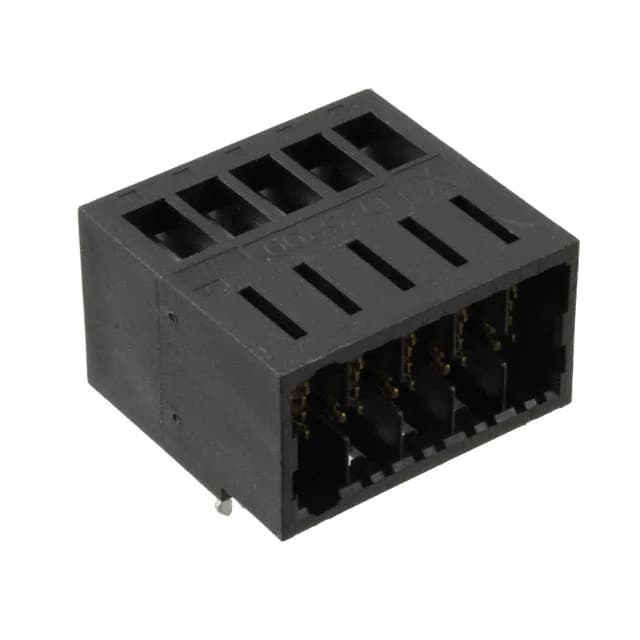

TE Connectivity AMP Connectors Dynamic DZ5200 header, order code 1-1747145-5, 5 positions, single row, 5.08 mm pitch, 20 A, 250 V, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic DZ5200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 20A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.630\" (16.00mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide, Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
The 1-1747145-5 is the 5-circuit member of TE's Dynamic DZ5200 single-row shrouded header line, designed for board-to-cable/wire power distribution. It carries gold-plated mating contacts rated 20 A at 250 V, mounts through-hole right-angle, and uses a detent lock for positive retention. The shrouded 4-wall housing with board guide and board lock aids alignment and hold during soldering.
RoHS and REACH compliance documentation is available from TE Connectivity for this part number.
