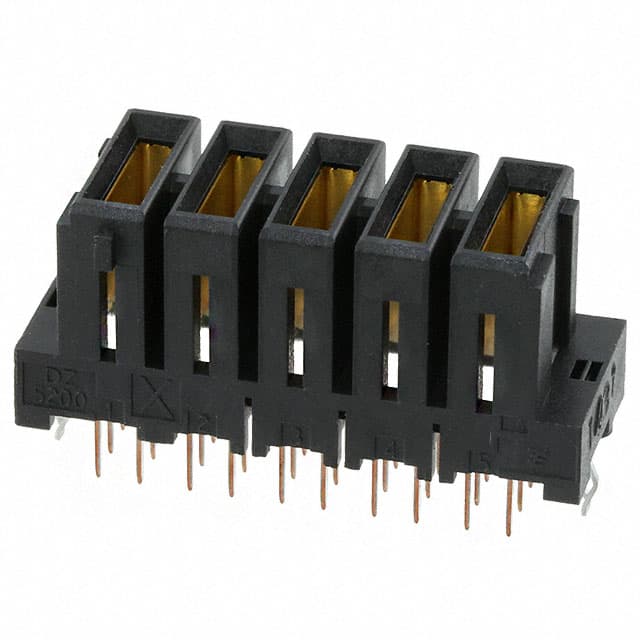

TE 1-1747147-5 Dynamic DZ5200 Receptacle, 5.08mm, 20A
MPN1-1747147-5
Active
TE Connectivity 1-1747147-5, Dynamic DZ5200 series, 5-position 1-row board-to-board receptacle, 0.200in (5.08mm) pitch, 250V, 20A per circuit, gold-plated mating contact/tin post, push-pull fastening, through-hole solder, board lock, -55°C to 105°C, UL94 V-0.
$12.6096Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic DZ5200 |
| Type | Female Blade Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 250V |
| Current rating | 20A |
| Operating temperature | -55°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.551\" (14.00mm) |
| Insulation material | Polyester, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Features | Board Guide, Board Lock |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Frequently asked questions
What is 1-1747147-5's connector style?
Board to Board — this is a mid-plane or backplane board-stack receptacle, not a wire-to-board or panel connector.
