TE Connectivity AMP Connectors 1-1747276-2 — Connector Housings

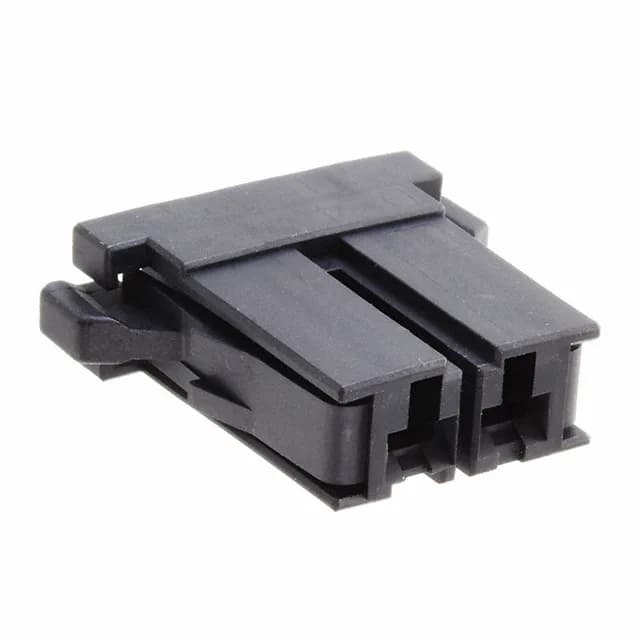

TE Dynamic D-4200 1-1747276-2, 2-Pos Receptacle Housing

MPN1-1747276-2
Active

TE Connectivity Dynamic D-4200 receptacle housing, 1-1747276-2, 2 positions, 1 row, free hanging, latch lock, crimp termination, black thermoplastic, -55°C to 105°C, contacts not included.

$1.0800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-4200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1747276-2 specifications
ParameterValue
SeriesDynamic D-4200
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
PackageBulk
Rows1
Contact terminationCrimp
Positions2

Product details

2-Position Receptacle Housing for Dynamic D-4200 Harnesses

Two Positions vs One — the Sibling Comparison

The 1-1747276-2 carries 2 positions, while the 1-1747276-1 is the 1-position member of the same Dynamic D-4200 receptacle housing family. Both share the single-row layout, latch-lock fastening, free-hanging mount, and the same -55°C to 105°C temperature range. The position count is the only functional difference — choose the 2-position version when your circuit count requires a second contact in the same housing body.

Frequently asked questions

What contacts are compatible with 1-1747276-2?

The 1-1747276-2 accepts female socket crimp terminals from the TE Dynamic D-4200 series. The contacts are not included with this housing and must be ordered as a separate line item.

What is the difference between 1-1747276-2 and 1-1747276-1?

The 1-1747276-2 has 2 positions while the 1-1747276-1 has 1 position. Both are single-row Dynamic D-4200 receptacle housings with latch-lock fastening and the same -55°C to 105°C rating.
