TE Connectivity AMP Connectors 1-1747535-4 — Connector Housings

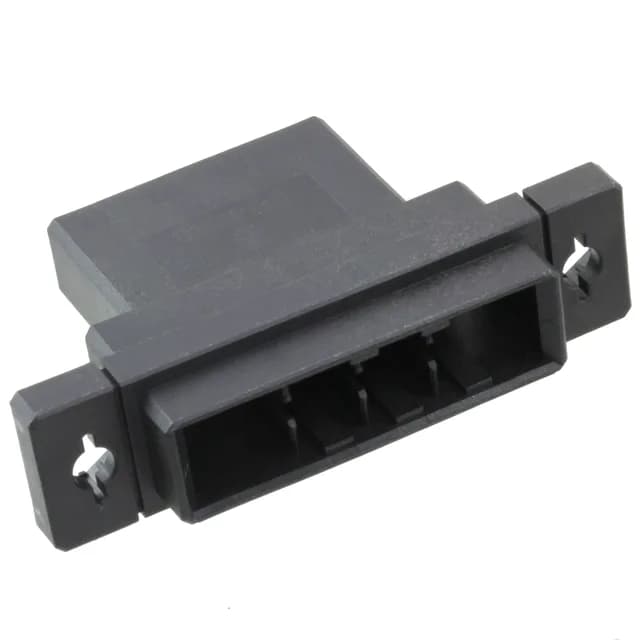

TE Dynamic D-4200 1-1747535-4, 4-Pos Plug Housing

MPN1-1747535-4
Active

TE Connectivity Dynamic D-4200 series, Plug Housing, 4 Position, 1 Row, Panel Mount, Crimp Tab Contacts, Black Thermoplastic, Bulk.

$2.4800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1747535-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-4200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1747535-4 specifications
ParameterValue
SeriesDynamic D-4200
TypeTab
MountingPanel Mount
Connector typePlug
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
PackageBulk
FeaturesMounting Flange
Rows1
Contact terminationCrimp
Positions4

Product details

4-Position Dynamic D-4200 Plug Housing — Contacts Not Included

The tab-style contacts are crimp-terminated, which means the harness builder needs the matching Dynamic D-4200 crimp terminal and the correct applicator tooling for the wire gauge specified in the assembly drawing.

The housing is keyed to the D-4200 family.

Panel Mount with Flanges — Installation Notes

The mounting flanges are molded into the housing body, not a separate bracket. They accept standard fasteners for bolting the plug to a panel cutout, which takes the cable strain off the terminal-crimp interface and transfers it to the panel.

Frequently asked questions

Does 1-1747535-4 include contacts?

No. The listing explicitly states Contacts Not Included. The 1-1747535-4 is a bare plug housing only; the crimp tab terminals must be ordered separately as a distinct part number from the Dynamic D-4200 terminal line.

What is the mating connector for 1-1747535-4?

The 1-1747535-4 plug housing mates with the corresponding 4-position Dynamic D-4200 receptacle header. Both halves use the same single-row tab/receptacle interface and are keyed to the D-4200 series only.
