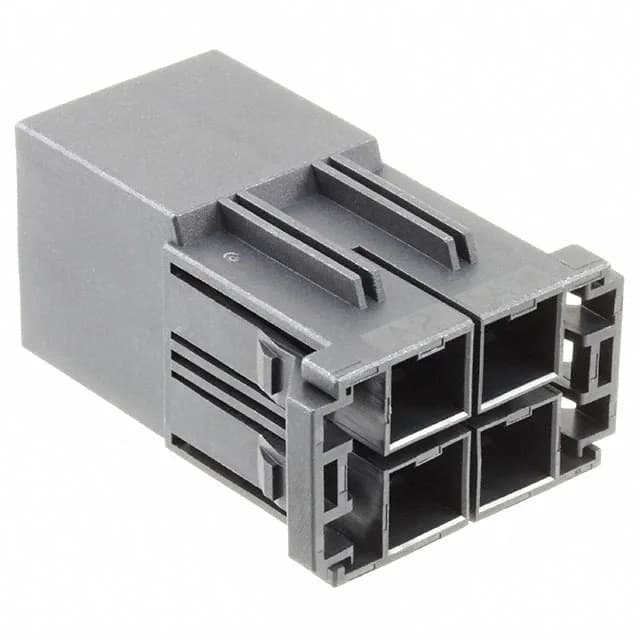

Panel-Mount Plug Housing for Power Distribution
Pitch and Panel Cutout Fit
The 10.16 mm pitch and matching 0.400" row spacing define the panel cutout and terminal layout. This is a dual-row, 4-position arrangement — two positions per row — so the board or bulkhead opening must accommodate the 10.16 mm centerline spacing between adjacent contacts and the same distance between rows. The panel-mount orientation means the housing sits fixed to the enclosure wall, with the harness plugging into it from the opposite side.
Sourcing — Contacts and Mating Half
This is a housing-only order code — the crimp terminals must be sourced separately. The tab-type contact interface accepts the corresponding Dynamic D-3500 receptacle contacts. The mating half is the 1-2069332-1 receptacle housing (4-position, 10.16 mm pitch, female socket contacts, panel mount with mounting flange).
