4-Position Housing at 10.16mm Pitch — the Wire-to-Panel Power Shell

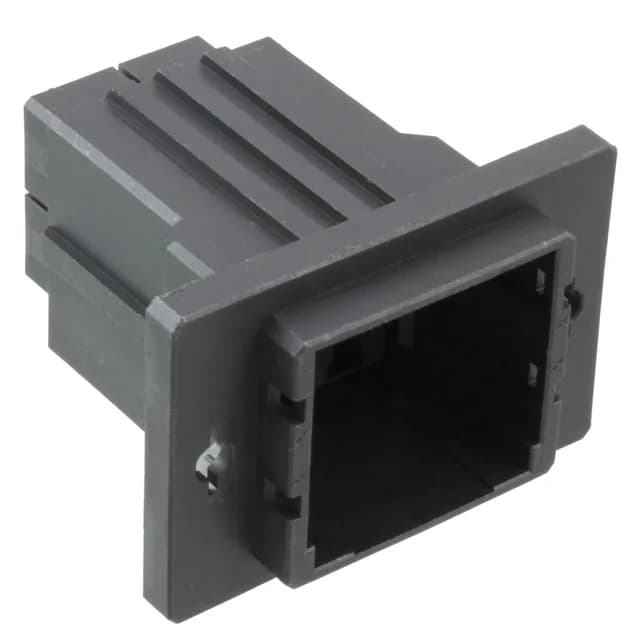

The TE Dynamic D-5300 1-1747822-2 is a 4-position, 2-row receptacle housing from the D-5300 series, built for panel-mount wire-to-wire or wire-to-board power interconnects. Its 10.16mm pitch is wide enough to handle higher-voltage creepage and larger-gauge power wiring without crowding the panel cutout.
Contacts Not Included — the Most Common Sourcing Miss
This is the single most frequent BOM error with this part: the housing arrives, the terminals do not. The Dynamic D-5300 series uses a dedicated female crimp terminal (TE order code 1-1747822-2's mating contact is the 1747822-1 or similar D-5300 socket terminal; verify the exact wire gauge range against the terminal datasheet). Plan the terminal order at the same time as the housing to avoid a split shipment. The 4-position count at 10.16mm pitch gives each circuit generous clearance — useful for power wiring up to 10-12 AWG depending on the terminal selected. The dual-row layout keeps the panel cutout compact for a 4-circuit power feed.
The part is not stocked on a speculative basis; order quantities are quoted per BOM line.
