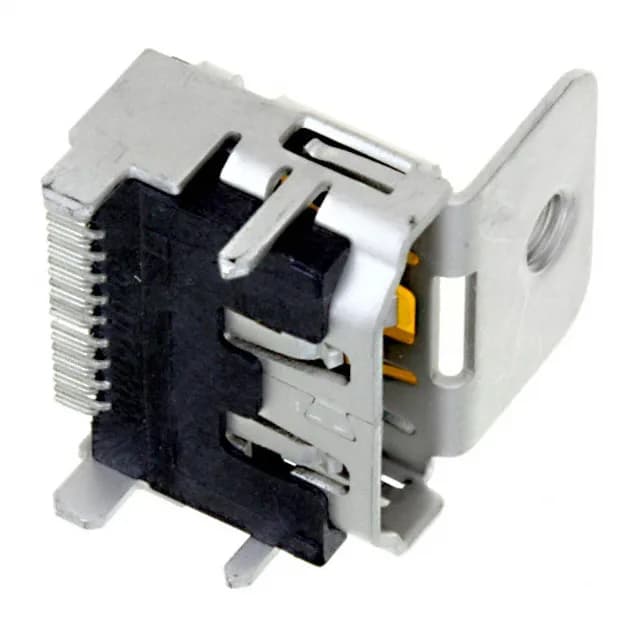

19-Pin HDMI Type A Receptacle for Panel-Mount Applications
The 1-1747981-1: This is the standard 19-pin HDMI interface carrying the full 40VAC/0.5A per contact rating — enough for the HDMI signal set and power delivery within the spec. The gold-plated contacts and 10,000 mating cycle rating make it a fit for equipment that sees frequent cable swaps, like test fixtures, kiosk displays, or AV distribution panels.
Mounting and Orientation — Panel Flange, Right-Angle Exit
This receptacle mounts through the panel using a horizontal flange, so the connector body is anchored to the chassis while the solder tails run perpendicular to the mating axis. The mounting feature is listed as Flange, Horizontal — the flange sits flat against the panel, and the right-angle termination means the PCB or flex attaches parallel to the panel plane.
Mating Cycle Life and Contact Finish
The gold contact finish supports that cycle life without wear-through, so the connector maintains signal integrity across repeated reconnections. For a panel-mount port that gets daily cable swaps, that rating translates to years of field service before contact resistance drifts.
