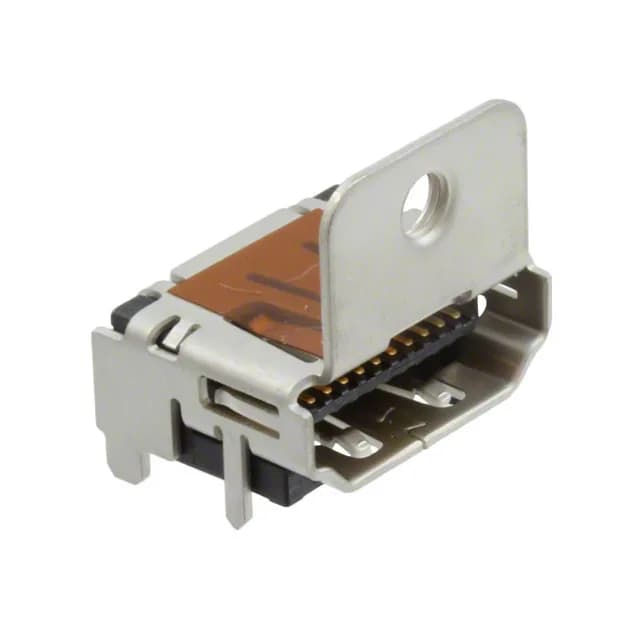

The TE Connectivity 1-1747981-5 is a full-size HDMI receptacle with 19 contacts, the standard pinout for HDMI 1.4 through 2.1 signal paths. It is a female port-side connector designed to mount on a PCB or panel and accept a standard HDMI plug. The 0.5A per contact rating and 40VAC voltage limit place it in the signal-level range — this is for digital audio/video links, not power delivery.
This part number covers three mounting methods in one device: panel mount with a horizontal flange, surface-mount right-angle, and through-hole. That flexibility means a single BOM line can serve different assembly variants — a panel-mounted port on an enclosure wall, an SMT connector on a board edge, or a through-hole version for hand-solder rework. Termination is solder in all cases; the Tape & Reel packaging suits automated pick-and-place for the SMT variant.
What the 10,000 Mating Cycles Mean for Your Build
The 10,000-cycle rating is the standout spec on this connector. A standard HDMI port on a TV or monitor is typically rated for 5,000 cycles. The copper alloy shell/shielding material provides EMI containment across the HDMI signal pair.
