Board lock and shrouding for industrial duty
The 1-1747994-1: The shrouded 4-wall housing with board lock provides mechanical retention during soldering and vibration resistance in the mated assembly.

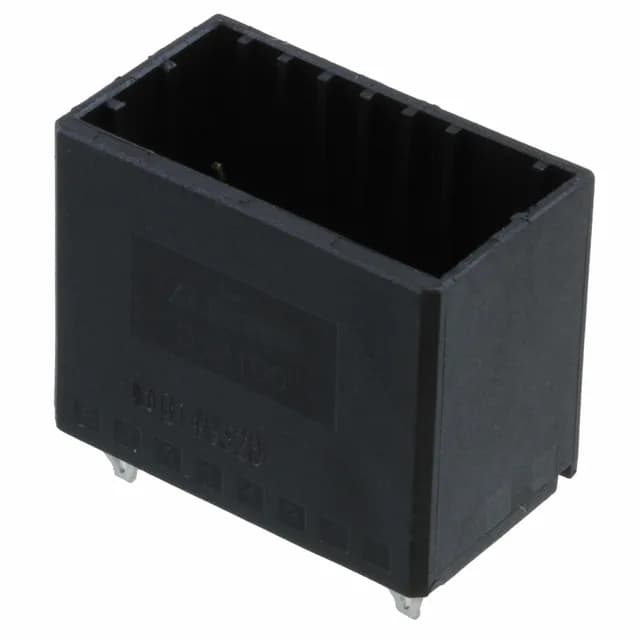

TE Dynamic D-2100 1-1747994-1 Header, 16-Pos 2.50mm
MPN1-1747994-1
Active
TE Connectivity AMP Connectors Dynamic D-2100 header, order code 1-1747994-1, 16 positions, dual row, 2.50 mm pitch, 5 A, 250 V, gold-plated mating contacts, through-hole, solder termination.
$3.3820Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 5A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.700\" (17.78mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 16 |
| Row spacing - mating | 0.148\" (3.75mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What compliance documentation is available for 1-1747994-1?
The header carries a UL94 V-0 material flammability rating. RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors.
