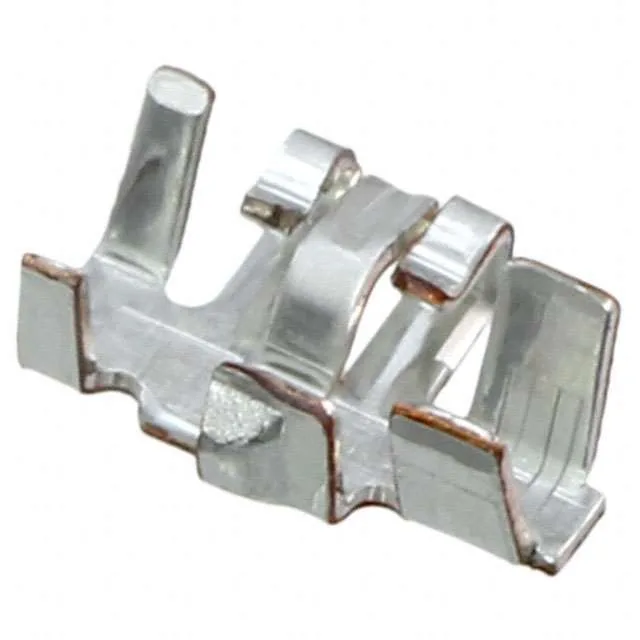

1-175161-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE CT 1-175161-1 Socket Crimp Contact 22-26 AWG Tin

MPN1-175161-1
Active

TE Connectivity AMP Connectors CT series socket contact, order code 1-175161-1, 22-26 AWG, tin-plated mating contact, 10.0µin (0.25µm) finish, crimp termination, Bulk package.

$1.25Ref. price · indicative, final on quote
1-175161-1 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-175161-1 Technical Specifications
ParameterValue
SeriesCT
Wire gauge22-26 AWG
PackageBulk
Pin or socketSocket
Contact finishTin
Contact terminationCrimp
Contact finish thickness10.0µin (0.25µm)

Product details

Crimp termination, 22-26 AWG range

The 1-175161-1 is a tin-plated socket contact from TE's CT series, accepting 22-26 AWG wire with a crimp termination. The contact finish thickness is 10.0µin (0.25µm) — a standard tin layer for signal-level current in a dry environment.

Tin plating and wire fit

Tin-plated contacts mate well with tin-plated header pins in the same CT series; the 10.0µin (0.25µm) finish suits applications where the mating cycle count stays under 25. The 22-26 AWG range covers common signal and low-power wiring — the crimp barrel deforms around the conductor strands, so the strip length and tool die must match the wire gauge.
