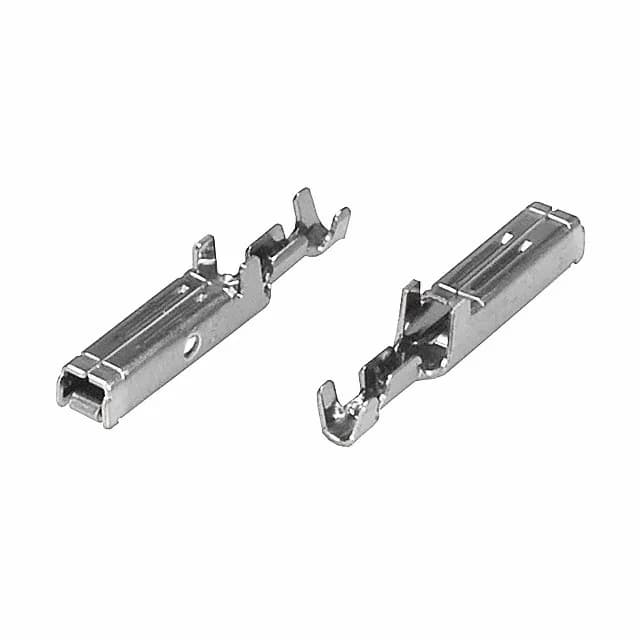

TE Connectivity Dynamic D-3 socket, order code 1-175194-3, 24-28 AWG, gold-plated contact, 30.0µin (0.76µm) finish, crimp termination, Tape & Reel (TR) Cut Tape (CT) package.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3 |
| Wire gauge | 24-28 AWG |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Pin or socket | Socket |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
The 1-175194-3 is a gold-plated socket from TE's Dynamic D-3 series, accepting 24-28 AWG wire with crimp termination.
Within the Dynamic D-3 series the 1-175194-3 accepts 24-28 AWG wire, while the 1-1326032-0 handles 16 AWG and the 929989-8 covers 17-20 AWG — the wire-gauge range is the primary selection axis for the crimp terminal.
The 1-175194-3 is ROHS3 Compliant.
No — the 1-175194-3 accepts 24-28 AWG wire, while the 1-1326032-0 accepts 16 AWG. The wire-gauge range differs, so the same wiring cannot be used without rewiring.
