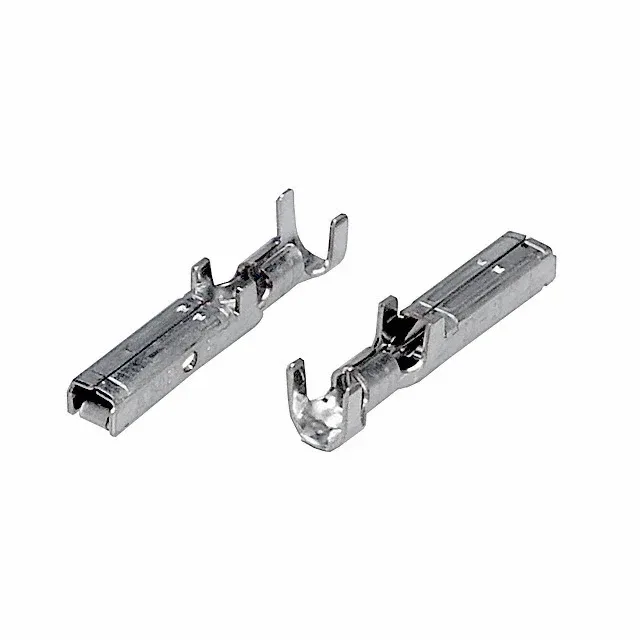

1-175196-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Dynamic D-3 1-175196-5 Crimp Socket, 16-20 AWG, Tin

MPN1-175196-5
Active

TE Connectivity Dynamic D-3 crimp socket, order code 1-175196-5, 16-20 AWG, tin-plated contact, crimp termination, Tape & Reel packaging.

$0.1613Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-175196-5 Technical Specifications
ParameterValue
SeriesDynamic D-3
Wire gauge16-20 AWG
PackageTape & Reel (TR)
Pin or socketSocket
Contact finishTin
Contact terminationCrimp

Product details

Crimp socket for Dynamic D-3 housings

The 1-175196-5 is a tin-plated crimp socket from TE's Dynamic D-3 series, accepting 16-20 AWG wire. Crimp termination with Tin contact finish; the part ships in Tape & Reel packaging and is RoHS compliant.

Position within the Dynamic D-3 contact family

Within the Dynamic D-3 series, the 1-175196-5 socket (16-20 AWG, Tin) sits alongside the 1-1326032-0 socket (16 AWG, Tin, 31.5µin plating) and the 929989-8 socket (17-20 AWG, Tin). The 1-1326032-0 carries a heavier 31.5µin (0.80µm) tin plating thickness compared to the 1-175196-5 — the thicker plating suits higher-cycle or more corrosive environments.

Supplied in Tape & Reel packaging; quoted to order against BOM quantity.

Frequently asked questions

What wire gauge does 1-175196-5 accept?

The crimp socket accepts 16-20 AWG wire.
