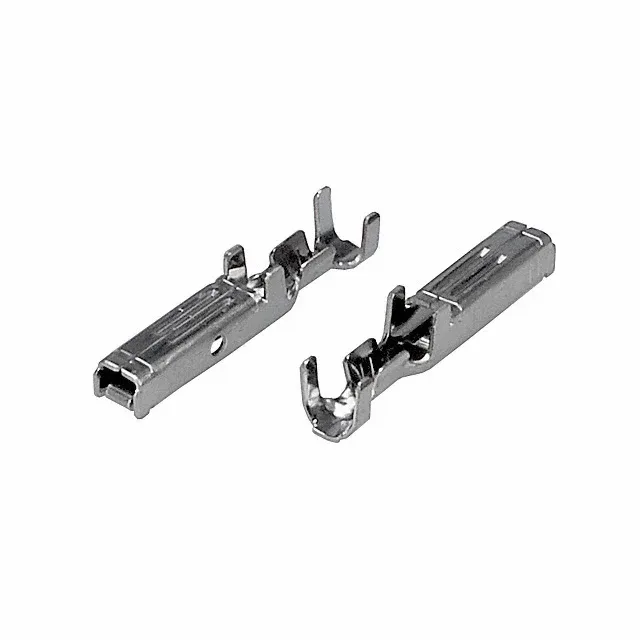

1-175217-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Dynamic D-3 1-175217-3 Crimp Socket, 20-24 AWG, Gold

MPN1-175217-3
Active

TE Connectivity AMP Connectors Dynamic D-3 crimp socket, order code 1-175217-3, 20-24 AWG, socket contact, gold finish 30.0µin (0.76µm), crimp termination, bulk package.

$0.71Ref. price · indicative, final on quote
1-175217-3 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-175217-3 Technical Specifications
ParameterValue
SeriesDynamic D-3
Wire gauge20-24 AWG
PackageBulk
Pin or socketSocket
Contact finishGold
Contact terminationCrimp
Contact finish thickness30.0µin (0.76µm)

Product details

Crimp socket for 20-24 AWG wire

The 1-175217-3 is a Dynamic D-3 series crimp socket accepting 20-24 AWG wire, with gold plating at 30.0µin (0.76µm) on the contact interface. Crimp termination and bulk packaging suit harness assembly where the contact is applied to the wire before insertion into the housing.

Wire gauge selection across the series

Within the Dynamic D-3 socket family the 1-175217-3 covers 20-24 AWG, while the 1-175216-3 accepts 24-28 AWG and the 1-175218-3 accepts 16-20 AWG — all three share the same 30.0µin gold plating and crimp termination, so the wire gauge is the sole selection axis. A thinner-gold sibling, the 1-175217-2, offers the same 20-24 AWG range with 15.0µin (0.38µm) gold — the 30.0µin version provides additional margin for repeated mating cycles in the same wire range.

Frequently asked questions

What compliance documentation does TE provide for 1-175217-3?

The 1-175217-3 is ROHS3 Compliant per the manufacturer listing.

Will 1-175217-3 drop into a panel specified around 1-175216-3 without rewiring?

Both are Dynamic D-3 crimp sockets with the same gold plating thickness and crimp termination, but the 1-175216-3 accepts 24-28 AWG while the 1-175217-3 accepts 20-24 AWG — the wire gauge range differs, so the wire size must match the contact.
