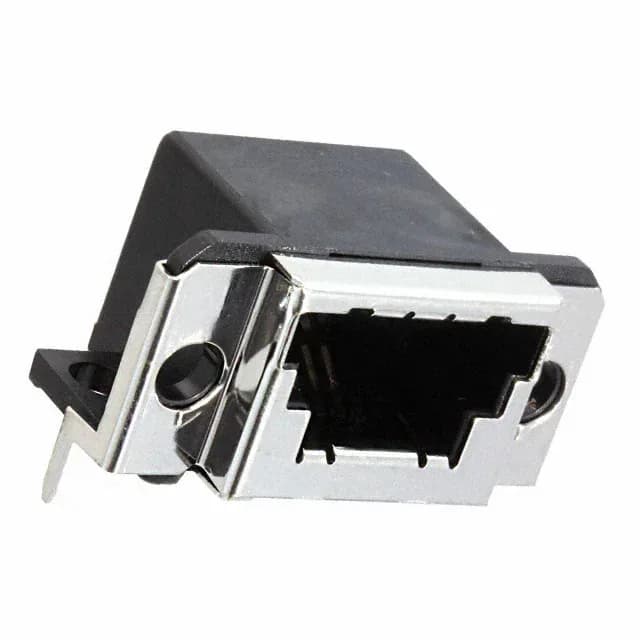

Shielded 4-Position SDL Jack for Board-Edge Termination
Gold Plating and Contact Reliability
The gold-on-phosphor-bronze combination also keeps contact resistance stable through thermal cycling between -20°C and 80°C.
Board Guide and Keying for Assembly
The housing includes a board guide and a keyed interface. The board guide aligns the jack during wave-solder placement so the shield tabs drop into their plated-through holes without skew. The keying prevents inserting a non-keyed plug — useful when you need to segregate data traffic on a specific port in a multi-jack panel.
