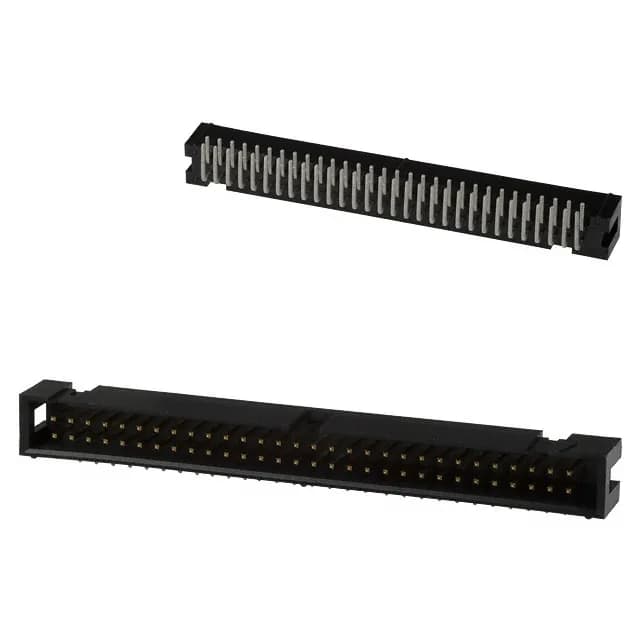

1-1761605-6 TE AMP-Latch Header, 60 Pos, 2.54mm, Obsolete

MPN1-1761605-6
Obsolete

TE Connectivity AMP-Latch header, 1-1761605-6, Board to Cable/Wire, 60 positions, 0.100" (2.54mm) pitch, through-hole right-angle, shrouded 4-wall, gold mating contacts, 1A per contact, 250VAC.

$7.2300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1761605-6 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

1-1761605-6 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.350\" (8.89mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

1-1761605-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions60
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Obsolete — Sourced Through Independent Channels

The 1-1761605-6 carries an Obsolete lifecycle status from TE Connectivity. No official successor or pin-compatible replacement is listed by the manufacturer. Available through independent distribution — quantities are lot-specific and confirmed at RFQ. No stock-holding claim; sourced per BOM line.

Mates with AMP-Latch IDC receptacles and socket housings that accept the 0.100" pitch, dual-row interface. Termination is solder — the 0.102" (2.60mm) post length suits standard through-hole PCB thicknesses.

Frequently asked questions

How can I order 1-1761605-6 or check availability?

The 1-1761605-6 is obsolete, but we can source it through independent distribution. No stock-holding claim is made on this page.

What is the replacement for 1-1761605-6?

TE Connectivity does not list an official successor or pin-compatible replacement for 1-1761605-6. A board spin may be required to use a different AMP-Latch header or another series. Contact us with your mating half and PCB layout details for cross-reference support.
