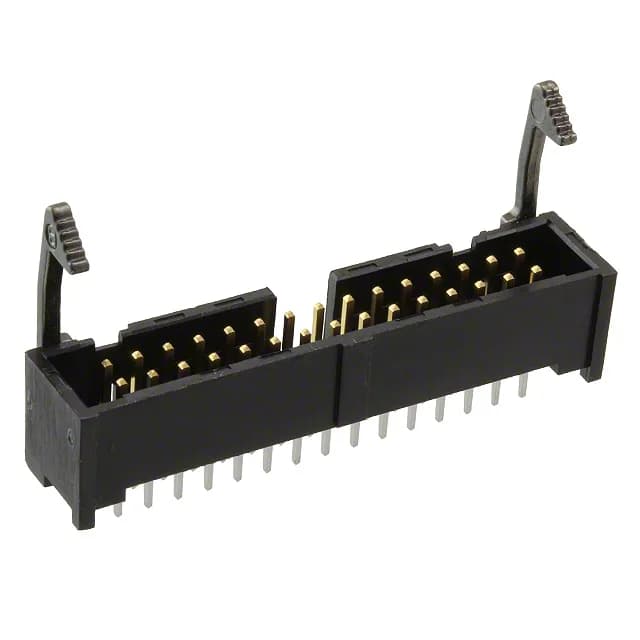

TE Connectivity AMP-Latch header, 1-1761606-0, 30 positions, 0.100" (2.54mm) pitch, dual-row, shrouded, through hole, male pin, 1 A per contact, 250 VAC, latch lock/eject hooks, active production, RoHS compliant.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-1761606-0: This is a TE Connectivity AMP-Latch header, style Board to Cable/Wire, with 30 positions arranged in dual rows on a 0.100" (2.54mm) pitch. The latch lock/eject hooks secure the mating receptacle and provide a positive retention that resists vibration. The keying slot prevents mismating with non-keyed counterparts.
Mates with AMP-Latch receptacles of the same series and position count. Termination is solder to through-hole PCB.
The pitch is 0.100" (2.54mm) on the mating interface, with the same row spacing.
