TE Connectivity AMP Connectors 1-1761606-1 — Pin Headers

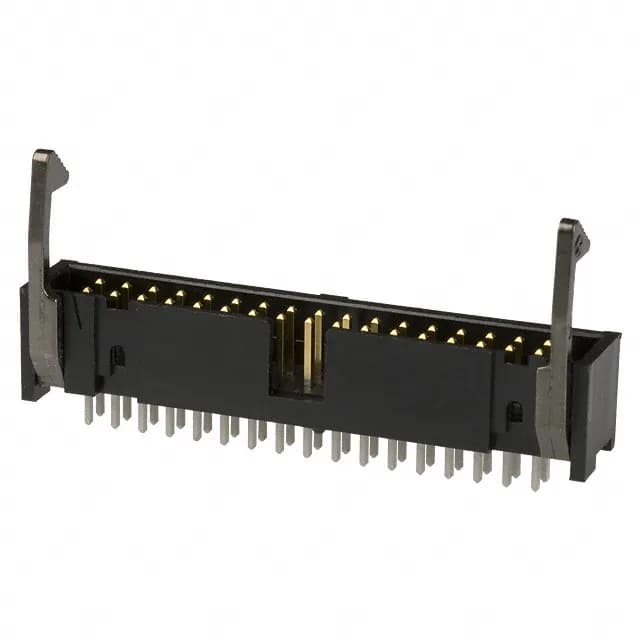

1-1761606-1 TE Connectivity AMP-Latch Header 34 Pos 2.54mm

MPN1-1761606-1
Active

TE Connectivity AMP-Latch, Header, Board to Cable/Wire, 34 Positions, 2.54mm Pitch, 2 Row, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Long, 1A per Contact, 250VAC, Black PBT, UL94 V-0

$7.1700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1761606-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1761606-1 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.404\" (10.26mm)
Insulation materialPolybutylene Terephthalate (PBT)

All specifications

1-1761606-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions34
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

34-Position Shrouded Header for IDC Ribbon Cable

The 1-1761606-1 is a 34-position, dual-row, through-hole header from the AMP-Latch series, designed for board-to-cable/wire applications. The shrouded 4-wall housing with a keying slot prevents mis-mating, and the long latch lock/eject hooks secure the mating cable connector and provide a lever for unmating in dense boards.

Signal-Level Current and Temperature Range

Rated at 1 A per contact and 250 VAC, this header is suited for signal-level interconnects, not power delivery.

Frequently asked questions

Is 1-1761606-1 RoHS compliant?

Yes, it is ROHS3 Compliant.

What is the recommended mating connector for 1-1761606-1?

This header mates with AMP-Latch IDC socket connectors of the same 34-position, 2.54mm pitch layout. The long eject hooks are designed for the corresponding latch-equipped cable assembly.
