TE Connectivity AMP-Latch, Header, 40 Positions, 2.54mm Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Long, 1A per Contact, 250VAC
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

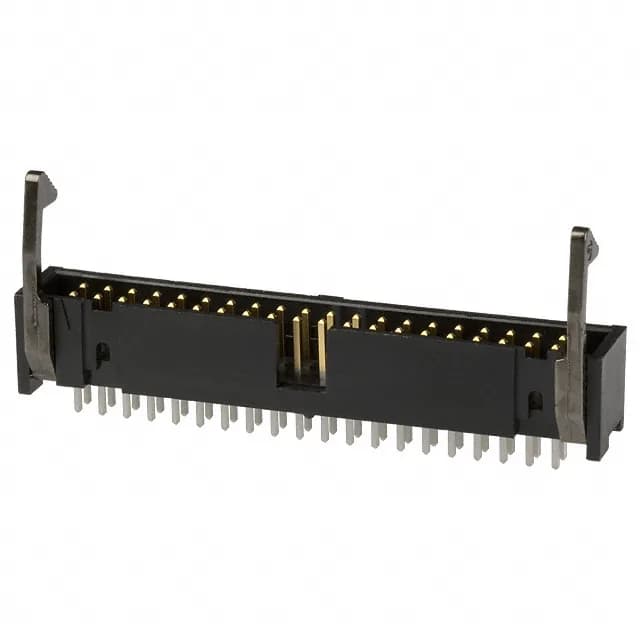

The 1-1761606-3 is a 40-position, 2-row, vertical through-hole header from the TE AMP-Latch series, designed to mate with standard 0.100-inch pitch IDC ribbon cable sockets.
Mates with any standard 0.100-inch pitch IDC socket, such as TE AMP-Latch or 3M Scotchflex series, 40-position, 2-row receptacle.
The 1-1761606-3 mates with any standard 0.100-inch pitch, 40-position, 2-row IDC ribbon cable socket, such as TE AMP-Latch or 3M Scotchflex series receptacles. The latch lock/eject hooks on the header engage with the corresponding slots on the socket.
