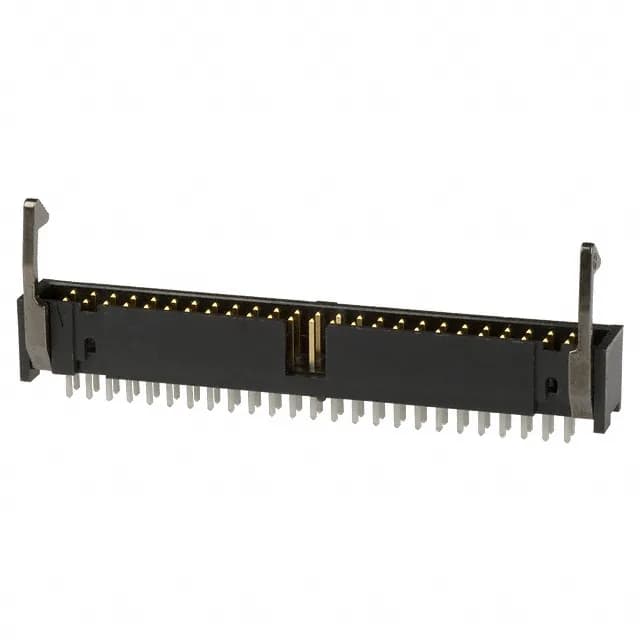

TE Connectivity AMP-Latch, 1-1761606-5, 50-position shrouded header, 2.54mm pitch, through-hole, latch lock/eject hooks, 1A per contact, 250VAC, -65°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.404\" (10.26mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-1761606-5 is a 50-position, dual-row, through-hole header from the AMP-Latch series, pitched at 0.100" (2.54mm) on both row and position spacing.
Mates with AMP-Latch receptacles (e.g., 1-1761606-6 for 60-position; confirm position count). Termination is solder — through-hole tails 0.102" (2.60mm) long.
The keying slot in the header ensures correct orientation. Confirm the receptacle's position count matches your harness.
The 1-1761606-5 has 50 positions; the 1-1761606-6 has 60 positions. Both share the same 2.54mm pitch, dual-row layout, gold/gold-palladium mating finish, latch lock/eject hooks, and active lifecycle. The choice depends on your circuit count.
