TE Connectivity AMP-Latch, 40-position, 0.100" (2.54mm) pitch, right-angle through-hole header, shrouded 4-wall, latch lock/eject hooks, gold mating finish, 1 A per contact, 250 VAC, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.237\" (6.02mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

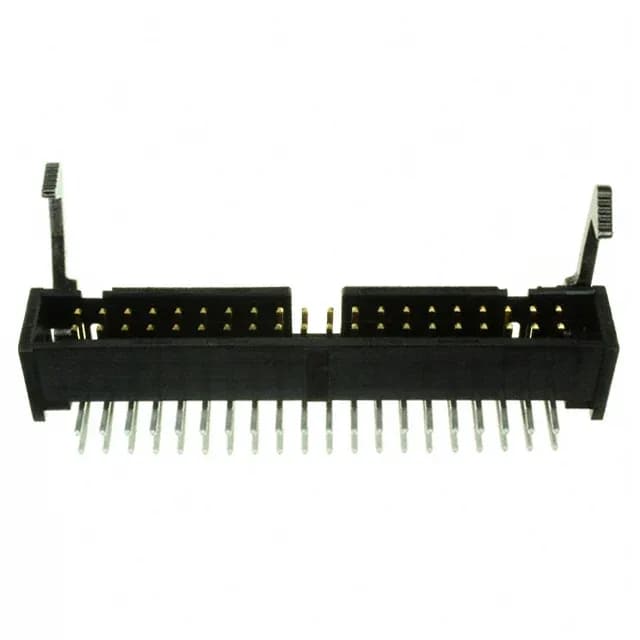

The 1-1761607-3 is a 40-position, 0.100" (2.54mm) pitch, right-angle through-hole header from the TE AMP-Latch series.
The PBT housing (UL94 V-0 rated) and phosphor bronze contacts with tin-plated solder tails (100.0 µin) suit wave-solder assembly. The 0.102" (2.60mm) post length fits standard PCB thicknesses.
This header mates with AMP-Latch IDC receptacles (e.g., TE 1-746285-3 or similar 40-position, 0.100" pitch, latch-compatible housing). Confirm the receptacle's keying slot alignment and eject hook clearance before ordering.
