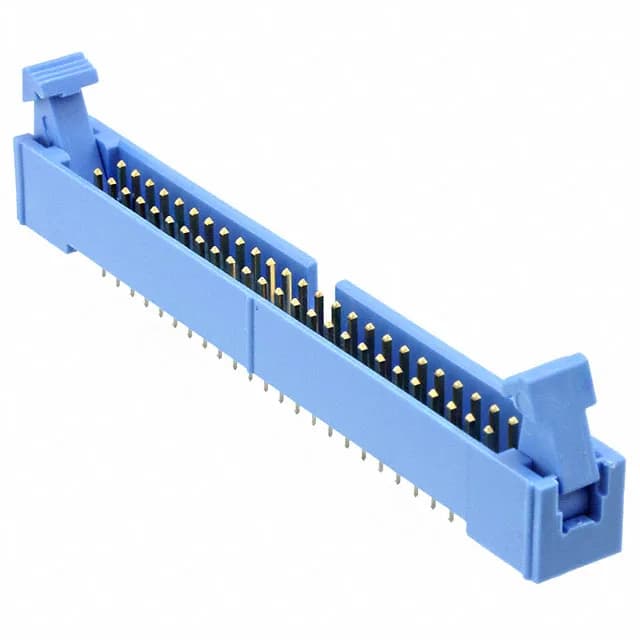

TE Connectivity AMP-Latch shrouded header, 1-1761685-5, 50 positions, 0.100" (2.54 mm) pitch, dual-row, through-hole, male pin, gold mating finish, latch lock/eject hooks, blue PBT housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-1761685-5: The 0.102" (2.60 mm) solder tail length sets the through-hole depth for a standard 1.6 mm board; the 0.240" (6.10 mm) mating pin length engages with the receptacle contact beam.
The eject hooks allow the receptacle to be disengaged without prying at the housing wall.
0.100" (2.54 mm) on both the mating pitch and row spacing.
An AMP-Latch receptacle with matching 0.100" pitch, 50 positions, dual-row layout, and latch lock features. The specific receptacle part number depends on the termination style (IDC, crimp, etc.) and cable entry orientation.
