TE Connectivity AMP Connectors 1-1761987-8 — Pluggable Assemblies

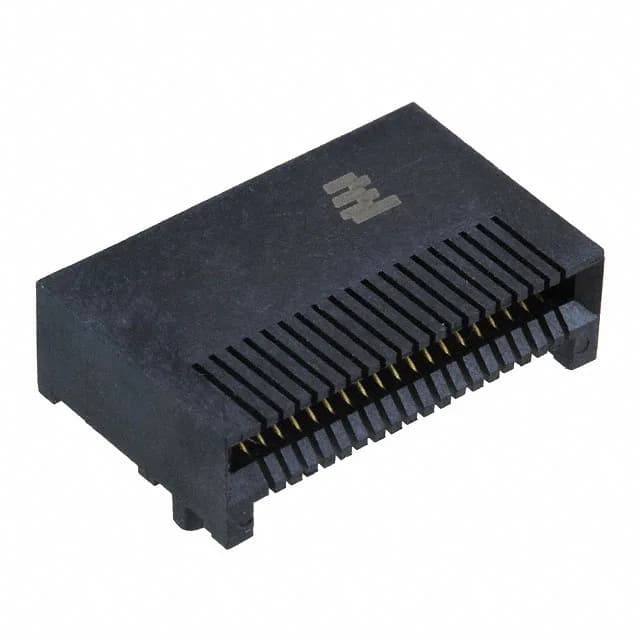

TE Connectivity 1-1761987-8 EVERCLEAR Mini SAS Receptacle

MPN1-1761987-8
Active

TE Connectivity EVERCLEAR series, SAS Mini receptacle, 1-1761987-8, 38 positions, right-angle surface mount, gold-plated contacts, solder termination, board guide.

$5.4400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1761987-8 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

1-1761987-8 specifications
ParameterValue
SeriesEVERCLEAR
MountingSurface Mount, Right Angle
Connector typeReceptacle
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
TerminationSolder
Contact finishGold
Positions38
Contact finish thickness15.0µin (0.38µm)

Product details

Mini SAS Receptacle for High-Density Storage Interconnects

The TE Connectivity 1-1761987-8 is a 38-position mini SAS receptacle from the EVERCLEAR series, designed for internal storage backplane and drive bay interconnects.

Board Layout and Assembly Fit

The right-angle orientation and SMT termination mean this part is reflow-soldered in a single pass — no secondary wave operation.

Contact Finish and Signal Reliability

Tin on the solder tail is fine for the one-time reflow joint.

The base product number 1761987 ties it to the broader EVERCLEAR family for cross-referencing.

Frequently asked questions

Where can I buy the 1-1761987-8 mini SAS receptacle?

Submit a request for quote (RFQ) for current pricing and availability confirmation.

What is the 1-1761987-8 compatible with?

It is a mini SAS receptacle, designed to mate with a standard mini SAS plug (not included). The 38-position layout supports 4-lane SAS 3.0 interfaces when paired with the correct cable assembly.
