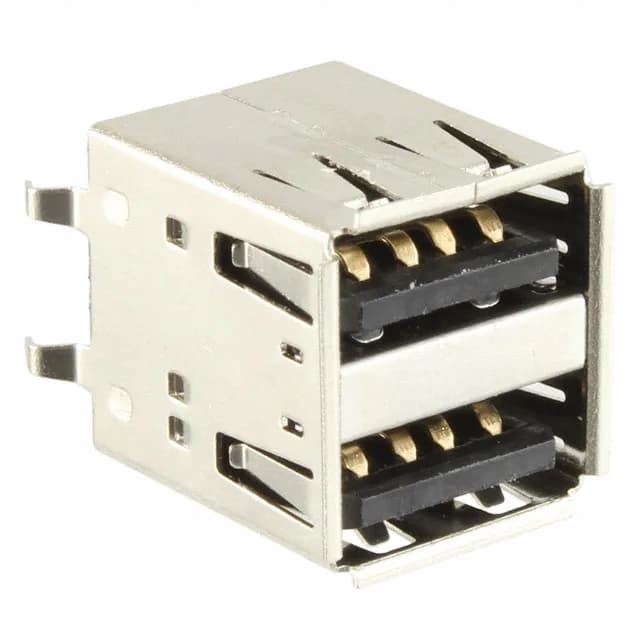

TE Connectivity 1-1775066-1 USB-A Receptacle, Stacked

MPN 1-1775066-1
Obsolete

TE Connectivity 1-1775066-1 stacked USB-A receptacle, 8 contacts, vertical through-hole, shielded, board lock, USB 2.0, gold contacts, UL94 V-0.

$2.8100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1-1775066-1 specifications
ParameterValue
MountingThrough Hole
Connector typeUSB-A (USB TYPE-A), Stacked
Positions8
Mounting featureVertical
Insulation colorBlack
Shell (Shielding material)Brass
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Stacked USB-A Receptacle, Vertical Through-Hole, 8 Contacts

The TE Connectivity 1-1775066-1 is a stacked USB-A (USB TYPE-A) receptacle — two USB ports stacked vertically in a single housing, sharing a common set of 8 contacts (4 per port, USB 2.0 pinout). It mounts vertically through-hole, with the mating face oriented upward from the PCB. The brass shell is shielded, and the housing carries board locks for mechanical retention during wave soldering and through repeated mating cycles.

The 1-1775066-1 is officially obsolete per TE Connectivity's lifecycle record. This means the factory no longer manufactures or stocks the part. No direct replacement is listed by TE; a pin-compatible alternative would need to match the stacked vertical USB-A form factor, 8 contacts, board locks, and through-hole mounting.

Board Lock and Mechanical Retention

For a vertical stacked receptacle that sees frequent field mating, the board locks prevent the solder joints on the signal pins from fatiguing. Without them, the connector would rely solely on the signal-pin solder fillets for retention, which is insufficient for the mechanical loads a USB port sees in service.

Shielding and USB 2.0 Signal Path
