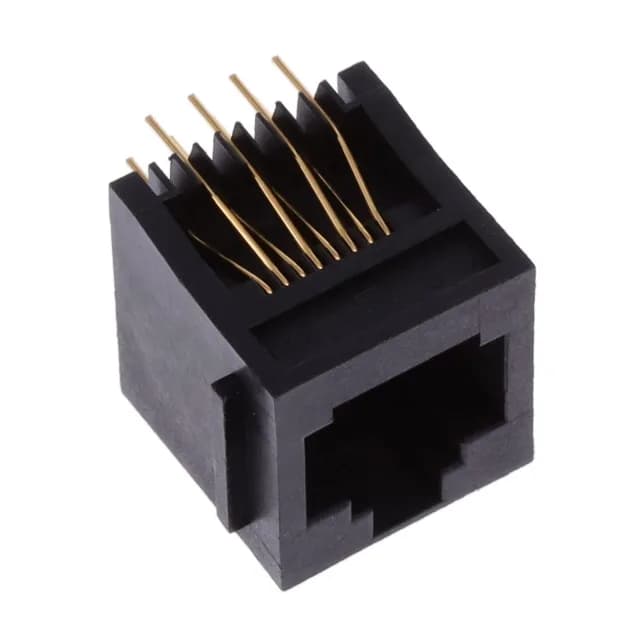

TE Connectivity A-RJ45 series, RJ45 jack, 8p8c (8 Position 8 Contact), 1 port, 1 row, vertical, through-hole, solder termination, unshielded, gold 30.0µin (0.76µm) contact finish.
| Parameter | Value |
|---|---|
| Series | A-RJ45 |
| Mounting | Through Hole |
| Connector type | Jack |
| LED color | Does Not Contain LED |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic, Glass Filled |
| Package | Tray |
| Shielding | Unshielded |
| Orientation | Vertical |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Tab direction | User Selectable |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
The TE Connectivity 1-1775089-3 is a vertical, through-hole RJ45 jack from the A-RJ45 series. It provides an 8p8c (8 Position 8 Contact) interface for standard Ethernet cabling, with a single port and single row of contacts. The connector is unshielded, making it suitable for cost-sensitive or low-EMI environments where a shielded shell is not required.
Submit a request for current pricing and availability — these are confirmed at quote time.
No, the 1-1775089-3 does not contain an LED. It is a plain RJ45 jack without link/activity indicators.
