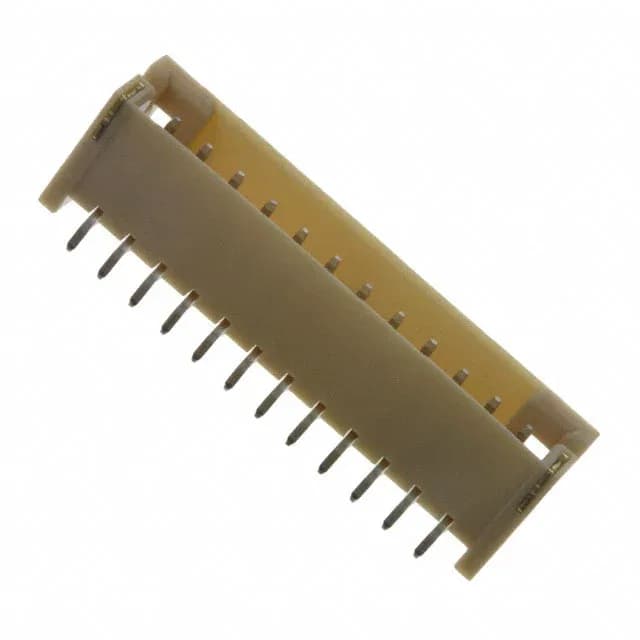

TE Connectivity AMP Connectors High Performance Interconnect (HPI) series, 1-1775469-2, 12-position single-row shrouded header, 2.00 mm pitch, surface-mount right-angle, tin-plated male pins, rated 3 A at 250 V.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.217\" (5.51mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.139\" (3.53mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 1-1775469-2: This is a 12-position, single-row header from TE's High Performance Interconnect (HPI) series.
The 4-wall shrouding protects the pins during mating and prevents misalignment.
ROHS3 compliant — no conflict with current environmental regulations.
No direct pin-compatible alternative is listed. The 12-position count and 2.00 mm pitch are specific to this order code. For a different position count, check other members of the HPI series.
This header mates with a board-to-cable/wire receptacle from the same HPI series. Confirm the mating half's pitch (2.00 mm) and position count (12) before ordering.
