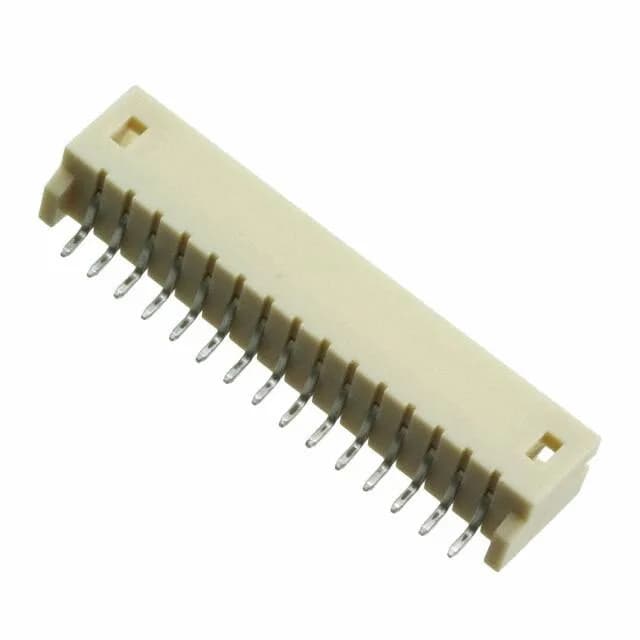

TE Connectivity AMP Connectors High Performance Interconnect (HPI) series, 1-1775469-5, board-to-cable/wire header, 15 positions, 1 row, 0.079" (2.00 mm) pitch, shrouded - 4 wall, surface mount right-angle, solder termination, tin-plated contacts, 3 A, 250 V.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.217\" (5.51mm) |
| Insulation material | Polyamide (PA9T), Nylon 9T |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 15 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.139\" (3.53mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
If your board is through-hole only, 1-292164-1 is a drop-in footprint match; if you need SMT, 1-1775469-5 is the one. Peer 1376366-8 offers 5 A per contact versus 3 A, but uses a 2.20 mm pitch and through-hole mounting — not a direct footprint swap.
Yes, it is ROHS3 compliant.
