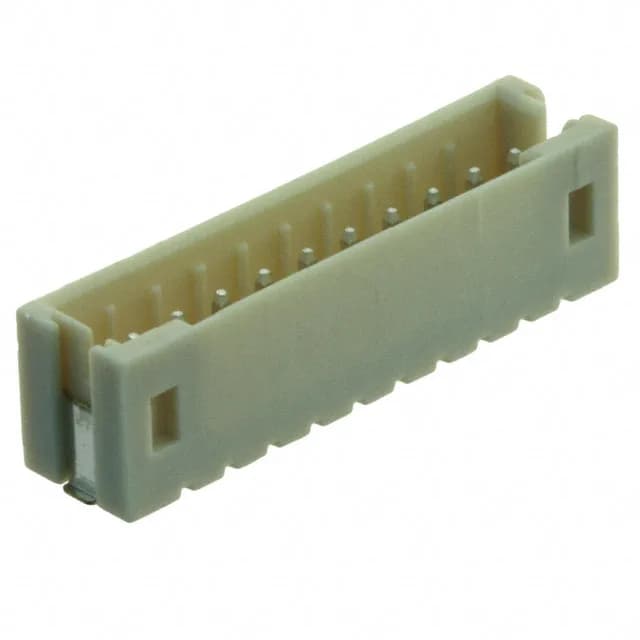

What this 10-position 2mm SMT header does
Its 2.00mm pitch and surface-mount termination suit automated assembly on dense PCBs where a shrouded 4-wall housing protects the male pins from damage and mis-mating. Rated 3A per contact at 250V, with tin-on-tin contact finish (80 µin on both mating and post sides), it covers signal and moderate power duties in automotive, industrial, and medical equipment.
At 2.00mm pitch, this header packs 10 positions into a 20mm board edge footprint. The 0.138" (3.50mm) mating pin length and 0.242" (6.14mm) insulation height define the mated stack height with the corresponding receptacle.
